770966-2
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 2POS 4.14MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 770966-2 Datasheet
-
ECAD Model
- Share
In Stock: 346
Can ship immediately
Pricing:
- 1$2.48
- 10$2.253
- 100$1.9312
- 500$1.60932
- 1,000$1.37942
- 5,000$1.22308
Quote It
Technical Details
- Series:Mini-Universal MATE-N-LOK
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.163" (4.14mm)
- Number of Positions:2
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.145" (3.68mm)
- Overall Contact Length:-
- Insulation Height:0.225" (5.72mm)
- Contact Shape:Circular
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin-Lead
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon
- Features:Board Lock
- Operating Temperature:-20°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:White
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:600VAC
Related Products
CONN HEADER R/A 40POS 2.54MM
- 1: $2.51000
- 80: $2.04848
- 160: $1.95537

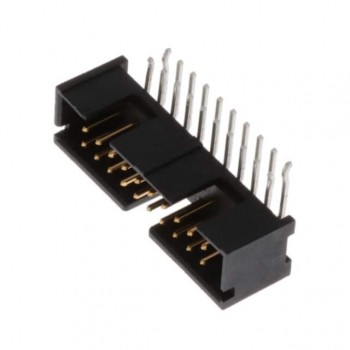

CONN HEADER R/A 20POS 2.54MM
