AT13-12PB-BM16

Tuchel / Amphenol
In Stock: 100,652

Can ship immediately

Pricing:
  • 1$10.76
  • 20$9.84838
  • 40$9.62146
  • 60$8.9408
  • 100$8.48691
  • 260$7.80615
  • 500$7.3523
  • 1,000$6.80768

Quote It

Technical Details

  • Series:AT Series™
  • Package:Tray
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Male Pin
  • Pitch - Mating:-
  • Number of Positions:12
  • Number of Rows:2
  • Row Spacing - Mating:0.250" (6.35mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:0.122" (3.10mm)
  • Overall Contact Length:-
  • Insulation Height:1.390" (35.30mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Board Guide, Mating Flange, Mounting Flange
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:IP67
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):13A
  • Voltage Rating:250V

Related Products


AT13-12PC-BM16

CONN HEADER R/A 12POS

  • 1: $10.76000
  • 20: $9.84838
  • 40: $9.62146

AT13-12PD-BM16

CONN HEADER R/A 12POS

  • 1: $10.76000
  • 20: $9.84838
  • 40: $9.62146

75844-101-72LF

CONN HEADER VERT 72POS 2.54MM

75844-101-72LF Datasheet
  • 1: $10.87000
  • 10: $10.39805
  • 100: $8.74352

87215-8

CONN HEADER VERT 24POS 2.54MM

87215-8 Datasheet
  • 1: $10.77000
  • 10: $10.30488
  • 100: $8.66532

776267-5

CONN HEADER R/A 14POS 4MM

776267-5 Datasheet
  • 1: $10.81000
  • 10: $10.36253
  • 100: $8.56035

ATM15-6P-BM02

CONN HEADER VERT 6POS

  • 1: $10.83000
  • 10: $9.91931
  • 45: $9.69106

1-103542-9

CONN HEADER VERT 40POS 2.54MM

1-103542-9 Datasheet
  • 1: $10.88000
  • 10: $10.41109
  • 100: $8.75478

AT13-4P-BM02

CONN HEADER R/A 4POS

  • 1: $10.92000
  • 10: $9.99788
  • 30: $9.76773

ADT-AMMC3903MACT002

AUTOMOTIVE CONNECTOR, 8+23 POSIT

  • 1: $11.04000
  • 10: $10.56000
  • 100: $8.88000

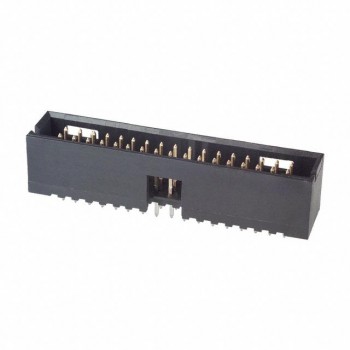

1-103169-5
