DF14A-4P-1.25H(24)
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD R/A 4POS 1.25MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet DF14A-4P-1.25H(24) Datasheet
-
ECAD Model
- Share
In Stock: 325
Can ship immediately
Pricing:
- 1$0.99
- 10$0.86831
- 25$0.81675
- 50$0.78272
- 100$0.74869
- 250$0.68063
- 500$0.61256
- 1,000$0.5445
Quote It
Technical Details
- Series:DF14
- Package:Tube
- Part Status:Last Time Buy
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.049" (1.25mm)
- Number of Positions:4
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.086" (2.20mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.098" (2.50mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin-Copper
- Contact Finish Thickness - Mating:39.4µin (1.00µm)
- Contact Finish - Post:Tin-Copper
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon
- Features:Solder Retention
- Operating Temperature:-35°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Beige
- Current Rating (Amps):1A
- Voltage Rating:150VAC
Related Products
CONN HEADER R/A SMT 12POS 1.27MM
- 1: $1.53000
1.25MM MICRO-LOCK PLUS PCB HDR V
- 1: $1.45000
1.25MM MICRO-LOCK PLUS PCB HDR V
- 1: $1.43000

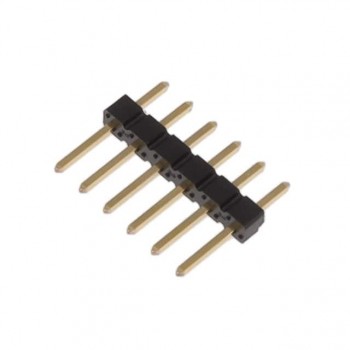

BERGSTIK HDR
- 1: $1.01000

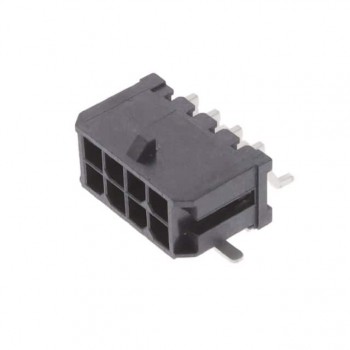

MINITEK PWR3.0 R/A SMT
