DML-08-A-V-T-SMT-BL-PP-T/R
Adam Tech- Lifecycle status Active
- RoHS RoHS Compliant

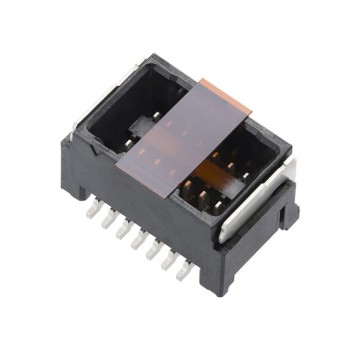

- DescriptionCONN HEADER SMD 8POS 3MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 466
Can ship immediately
Pricing:
- 1$1.14
- 10$1.03445
- 100$0.88666
- 500$0.73889
- 1,000$0.63334
- 5,000$0.56155
- 10,000$0.54889
Quote It
Technical Details
- Series:DML
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.118" (3.00mm)
- Number of Positions:8
- Number of Rows:2
- Row Spacing - Mating:0.118" (3.00mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.390" (9.91mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Thermoplastic
- Features:Board Lock
- Operating Temperature:-25°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):5A (AC/DC)
- Voltage Rating:250VAC/DC
