800-10-001-10-002000

Mill-Max
In Stock: 1,370

Can ship immediately

Pricing:
  • 1$0.25
  • 10$0.23125
  • 25$0.1975
  • 50$0.17292
  • 100$0.16052
  • 250$0.142
  • 500$0.13583

Quote It

Technical Details

  • Series:800
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:-
  • Number of Positions:1
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.142" (3.61mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:0.385" (9.77mm)
  • Insulation Height:0.110" (2.79mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass Alloy
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


PREC003DBAN-M71RC

CONN HEADER R/A 6POS 2.54MM

PREC003DBAN-M71RC Datasheet
  • 1: $0.25000
  • 10: $0.23400
  • 25: $0.19960

PREC008SBAN-M71RC

CONN HEADER R/A 8POS 2.54MM

PREC008SBAN-M71RC Datasheet
  • 1: $0.25000
  • 10: $0.23200
  • 25: $0.19800

350-10-101-00-006000

CONN HEADER VERT 1POS

350-10-101-00-006000 Datasheet
  • 1: $0.25000
  • 10: $0.22917
  • 25: $0.19583

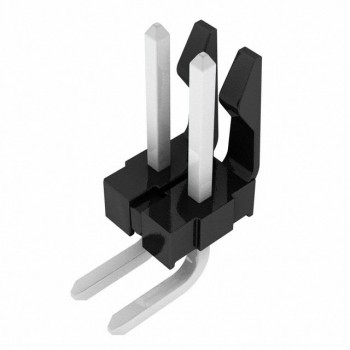

0026481026

CONN HEADER R/A 2POS 3.96MM

0026481026 Datasheet
  • 1: $0.26000
  • 10: $0.24700
  • 25: $0.21120

PBC02SABN

CONN HEADER VERT 2POS 2.54MM

PBC02SABN Datasheet
  • 1: $0.26000
  • 10: $0.24700
  • 25: $0.21200

0022284060

CONN HEADER VERT 6POS 2.54MM

0022284060 Datasheet
  • 1: $0.26000
  • 10: $0.24700
  • 25: $0.21200

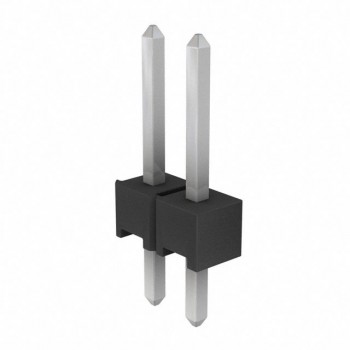

9-146278-0-02

CONN HEADER VERT 2POS 2.54MM

9-146278-0-02 Datasheet
  • 1: $0.26000
  • 10: $0.24700
  • 25: $0.21060

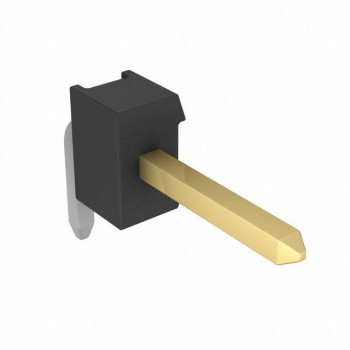

9-103325-0-01
