929700-01-02-RK

3M
In Stock: 501

Can ship immediately

Pricing:
  • 1$0.26
  • 10$0.248
  • 25$0.2116
  • 50$0.1852
  • 100$0.1719
  • 250$0.15208
  • 500$0.14548

Quote It

Technical Details

  • Series:929
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:2
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:0.528" (13.42mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:200.0µin (5.08µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.5A
  • Voltage Rating:-

Related Products


PEC01DACN

CONN HEADER VERT 2POS

PEC01DACN Datasheet
  • 1: $0.26000
  • 10: $0.24000
  • 25: $0.20480

GBC01SBSN-M89

CONN HEADER SMD R/A 1POS

GBC01SBSN-M89 Datasheet
  • 1: $0.26000
  • 10: $0.24400
  • 25: $0.20800

929836-02-01

CONN HEADER VERT 2POS

929836-02-01 Datasheet
  • 1: $0.26000
  • 10: $0.24100
  • 25: $0.20560

PREC010SFAN-RC

CONN HEADER VERT 10POS 2.54MM

PREC010SFAN-RC Datasheet
  • 1: $0.27000
  • 10: $0.25200
  • 25: $0.21520

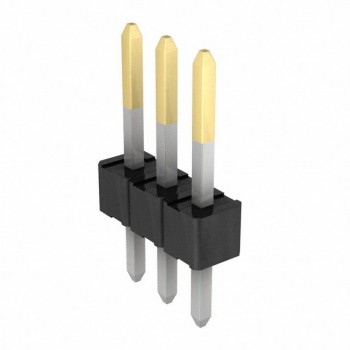

0022284033

CONN HEADER VERT 3POS 2.54MM

0022284033 Datasheet
  • 1: $0.27000
  • 10: $0.25500
  • 25: $0.21840

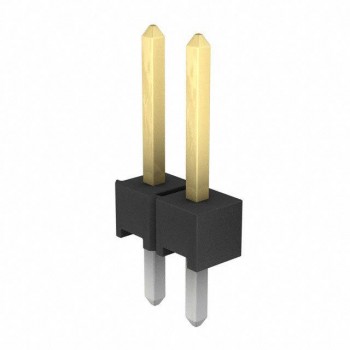

4-103185-0-02
