In Stock: 2,764

Can ship immediately

Pricing:
  • 1$0.35
  • 10$0.333
  • 25$0.286
  • 50$0.243
  • 100$0.2334
  • 250$0.2096
  • 500$0.20008

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.448" (11.39mm)
  • Insulation Height:0.098" (2.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A per Contact
  • Voltage Rating:-

Related Products


PREC014SFAN-RC

CONN HEADER VERT 14POS 2.54MM

PREC014SFAN-RC Datasheet
  • 1: $0.35000
  • 10: $0.32900
  • 25: $0.28240

0022284061

CONN HEADER VERT 6POS 2.54MM

0022284061 Datasheet
  • 1: $0.35000
  • 10: $0.32700
  • 25: $0.28000

NREC009SABC-M30RC

CONN HEADER SMD 9POS 2.54MM

NREC009SABC-M30RC Datasheet
  • 1: $0.35000
  • 10: $0.33500
  • 25: $0.28680

GEC02SBSN-M89

CONN HEADER SMD R/A 2POS 2.54MM

GEC02SBSN-M89 Datasheet
  • 1: $0.35000
  • 10: $0.33100
  • 25: $0.28400

929550-01-01-EU

CONN HEADER R/A 1POS

929550-01-01-EU Datasheet
  • 1: $0.35000
  • 10: $0.32700
  • 25: $0.28000

929647-01-01-EU

CONN HEADER VERT 1POS

929647-01-01-EU Datasheet
  • 1: $0.35000
  • 10: $0.33200
  • 25: $0.28480

9-146252-0-01

CONN HEADER VERT 2POS

9-146252-0-01 Datasheet
  • 1: $0.35000
  • 10: $0.32879
  • 25: $0.28212

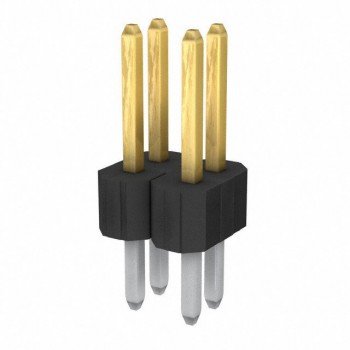

68602-204HLF
