350-10-102-00-006000
Mill-Max
- Lifecycle status Active
- RoHS RoHS Compliant

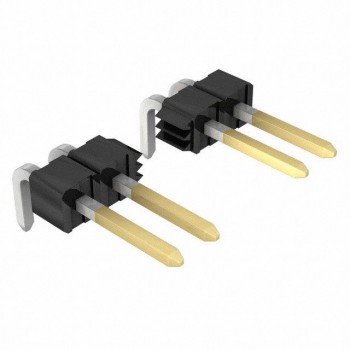

- DescriptionCONN HEADER VERT 2POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 350-10-102-00-006000 Datasheet
-
ECAD Model
- Share
In Stock: 4,126
Can ship immediately
Pricing:
- 1$0.46
- 10$0.43967
- 25$0.37699
- 50$0.3205
- 100$0.30799
- 250$0.2766
- 500$0.26402
Quote It
Technical Details
- Series:350
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:2
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.142" (3.61mm)
- Contact Length - Post:0.110" (2.79mm)
- Overall Contact Length:0.394" (10.00mm)
- Insulation Height:0.110" (2.79mm)
- Contact Shape:Circular
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Gold
- Contact Material:Brass Alloy
- Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
