0026481021

Woodhead - Molex
In Stock: 7,254

Can ship immediately

Pricing:
  • 1$0.48
  • 10$0.44677
  • 25$0.38178
  • 50$0.33378
  • 100$0.30997
  • 250$0.27419
  • 500$0.26226

Quote It

Technical Details

  • Series:KK396, 41661
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Positions:2
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.450" (11.43mm)



  • Contact Length - Post:0.172" (4.37mm)
  • Overall Contact Length:0.750" (19.05mm)
  • Insulation Height:0.128" (3.25mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:60.0µin (1.52µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


9-103326-0-02

CONN HEADER R/A 4POS 2.54MM

9-103326-0-02 Datasheet
  • 1: $0.48000
  • 10: $0.44800
  • 25: $0.40277

0026481030

CONN HEADER VERT 3POS 3.96MM

0026481030 Datasheet
  • 1: $0.48000
  • 10: $0.44862
  • 25: $0.38326

GEC02DFBN-M30

CONN HEADER SMD 4POS 2.54MM

GEC02DFBN-M30 Datasheet
  • 1: $0.48000
  • 10: $0.45000
  • 25: $0.40520

0022288062

CONN HEADER R/A 6POS 2.54MM

0022288062 Datasheet
  • 1: $0.48000
  • 10: $0.44800
  • 25: $0.40320

PEC05SABN

CONN HEADER VERT 5POS 2.54MM

PEC05SABN Datasheet
  • 1: $0.48000
  • 10: $0.45000
  • 25: $0.40520

9-146256-0-02

CONN HEADER VERT 4POS 2.54MM

9-146256-0-02 Datasheet
  • 1: $0.48000
  • 10: $0.44693
  • 25: $0.40235

PEC04SAEN

CONN HEADER VERT 4POS 2.54MM

PEC04SAEN Datasheet
  • 1: $0.48000
  • 10: $0.44800
  • 25: $0.40320

4-103240-0-02

CONN HEADER VERT 4POS 2.54MM

4-103240-0-02 Datasheet
  • 1: $0.48000
  • 10: $0.44693
  • 25: $0.40192

0022284110

CONN HEADER VERT 11POS 2.54MM

0022284110 Datasheet
  • 1: $0.48000
  • 10: $0.45400
  • 25: $0.38880

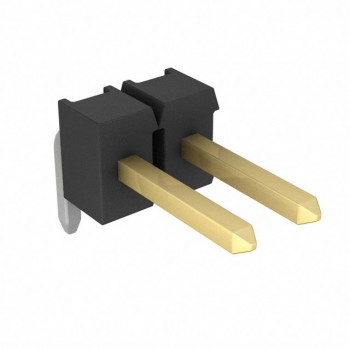

9-102974-0-02
