In Stock: 4,152

Can ship immediately

Pricing:
  • 1$0.57
  • 10$0.534
  • 25$0.48
  • 50$0.4268
  • 100$0.409
  • 250$0.37348
  • 500$0.35568

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:12
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.141" (3.60mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:0.331" (8.40mm)
  • Insulation Height:0.079" (2.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA6T), Nylon 6T
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A
  • Voltage Rating:150V

Related Products


4-103322-0-04

CONN HEADER VERT 8POS 2.54MM

4-103322-0-04 Datasheet
  • 1: $0.57000
  • 10: $0.53558
  • 25: $0.48181

PEC07SBAN

CONN HEADER R/A 7POS 2.54MM

PEC07SBAN Datasheet
  • 1: $0.57000
  • 10: $0.53900
  • 25: $0.48520

NRPN062PAEN-RC

CONN HEADER VERT 12POS 2MM

NRPN062PAEN-RC Datasheet
  • 1: $0.57000
  • 10: $0.53400
  • 25: $0.48000

0026486024

CONN HEADER R/A 2POS 3.96MM

0026486024 Datasheet
  • 1: $0.57000
  • 10: $0.51200
  • 100: $0.42130

PREC015DAAN-RC

CONN HEADER VERT 30POS 2.54MM

PREC015DAAN-RC Datasheet
  • 1: $0.57000
  • 10: $0.53600
  • 25: $0.48240

0022284150

CONN HEADER VERT 15POS 2.54MM

0022284150 Datasheet
  • 1: $0.57000
  • 10: $0.53000
  • 25: $0.47720

PRPC023SAAN-RC

CONN HEADER VERT 23POS 2.54MM

PRPC023SAAN-RC Datasheet
  • 1: $0.57000
  • 10: $0.53400
  • 25: $0.48080

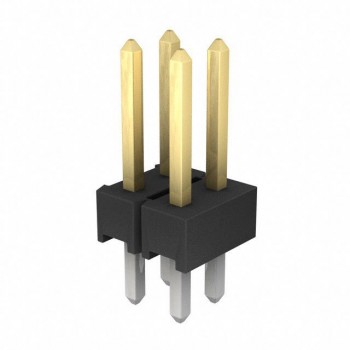

9-146257-0-02
