PEC07SBBN
Sullins Connector Solutions
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 7POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet PEC07SBBN Datasheet
-
ECAD Model
- Share
In Stock: 542
Can ship immediately
Pricing:
- 1$0.73
- 10$0.686
- 25$0.6176
- 50$0.5488
- 100$0.5259
- 250$0.4802
- 500$0.45734
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Connector Type:Header, Breakaway
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:7
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.230" (5.84mm)
- Contact Length - Post:0.200" (5.08mm)
- Overall Contact Length:-
- Insulation Height:0.140" (3.56mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:100.0µin (2.54µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polybutylene Terephthalate (PBT)
- Features:-
- Operating Temperature:-65°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:-
Related Products

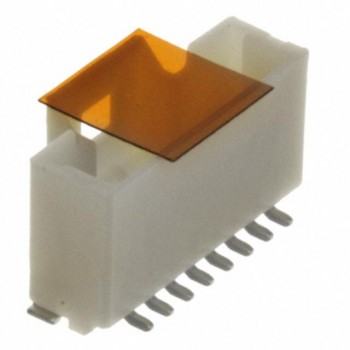

CONN HEADER SMD 8POS 1MM
