In Stock: 478

Can ship immediately

Pricing:
  • 1$0.74

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:2
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyamide (PA9T), Nylon 9T
  • Features:-
  • Operating Temperature:-65°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:600VDC

Related Products


0022288120

CONN HEADER R/A 12POS 2.54MM

0022288120 Datasheet
  • 1: $0.74000
  • 10: $0.69500
  • 25: $0.62520

929700-01-06

CONN HEADER VERT 6POS 2.54MM

929700-01-06 Datasheet
  • 1: $0.74000
  • 10: $0.69600
  • 25: $0.62640

PBC03DFDN

CONN HEADER VERT 6POS 2.54MM

PBC03DFDN Datasheet
  • 1: $0.74000
  • 10: $0.65300
  • 25: $0.61440

4-103747-0-04

CONN HEADER VERT 4POS 2.54MM

4-103747-0-04 Datasheet
  • 1: $0.75000
  • 10: $0.70078
  • 25: $0.63094

951206-7622-AR

CONN HEADER R/A 6POS 2MM

951206-7622-AR Datasheet
  • 1: $0.75000
  • 10: $0.70185
  • 25: $0.63741

951208-8622-AR

CONN HEADER VERT 8POS 2MM

951208-8622-AR Datasheet
  • 1: $0.75000
  • 10: $0.65900
  • 25: $0.61960

929836-01-04

CONN HEADER VERT 8POS 2.54MM

929836-01-04 Datasheet
  • 1: $0.75000
  • 10: $0.65600
  • 25: $0.61680

9-103324-0-04

CONN HEADER R/A 8POS 2.54MM

9-103324-0-04 Datasheet
  • 1: $0.75000
  • 10: $0.70325
  • 25: $0.63234

DF13A-8P-1.25H(21)

CONN HEADER SMD R/A 8POS 1.25MM

DF13A-8P-1.25H(21) Datasheet
  • 1: $0.75000
  • 1000: $0.40000
  • 2000: $0.37500

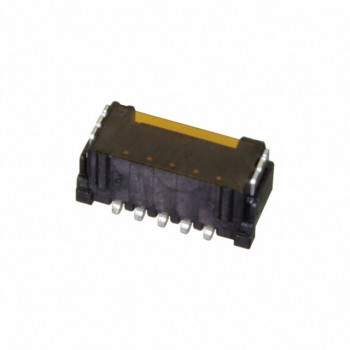

5055680571
