929835-01-14

3M
In Stock: 994

Can ship immediately

Pricing:
  • 1$1.06
  • 10$0.933
  • 25$0.878
  • 50$0.8416
  • 100$0.8049
  • 250$0.73176
  • 500$0.65856

Quote It

Technical Details

  • Series:929
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:14
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.235" (5.97mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:-
  • Insulation Height:0.115" (2.92mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin-Lead
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:-
  • Contact Material:Copper Alloy
  • Insulation Material:Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.5A
  • Voltage Rating:-

Related Products


0533980267

CONN HEADER SMD 2POS 1.25MM

0533980267 Datasheet
  • 1: $1.06000
  • 1000: $0.56896
  • 2000: $0.53340

929647-09-03-I

CONN HEADER VERT 3POS 2.54MM

929647-09-03-I Datasheet
  • 1: $1.06000
  • 10: $0.93600
  • 25: $0.88120

929647-02-03-I

CONN HEADER VERT 3POS 2.54MM

929647-02-03-I Datasheet
  • 1: $1.06000
  • 10: $0.93600
  • 25: $0.88120

27630702RP2

CONN HEADER R/A 7POS 2MM

27630702RP2 Datasheet
  • 1: $1.06000
  • 10: $0.93302
  • 25: $0.87803

951114-8622-AR

CONN HEADER VERT 14POS 2MM

951114-8622-AR Datasheet
  • 1: $1.06000
  • 10: $0.93400
  • 25: $0.87880

961113-6404-AR

CONN HEADER VERT 13POS 2.54MM

961113-6404-AR Datasheet
  • 1: $1.06000
  • 10: $0.93925
  • 25: $0.88929

929647-07-03-I

CONN HEADER VERT 3POS 2.54MM

929647-07-03-I Datasheet
  • 1: $1.06000
  • 10: $0.93600
  • 25: $0.88120

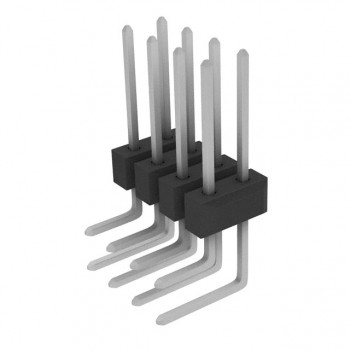

0717640004
