In Stock: 339

Can ship immediately

Pricing:
  • 1$1.26
  • 10$1.1101
  • 25$1.04537
  • 50$1.0017
  • 100$0.95814
  • 250$0.87105
  • 500$0.78394

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:12
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:0.533" (13.55mm)
  • Insulation Height:0.090" (2.29mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


929715-03-02-I

CONN HEADER VERT 4POS 2.54MM

929715-03-02-I Datasheet
  • 1: $1.26000
  • 10: $1.10700
  • 25: $1.04200

PBC16SFAN

CONN HEADER VERT 16POS 2.54MM

PBC16SFAN Datasheet
  • 1: $1.27000
  • 10: $1.11500
  • 25: $1.04960

20021121-00016C1LF

CONN HEADER SMD 16POS 1.27MM

20021121-00016C1LF Datasheet
  • 1: $1.27000
  • 1200: $0.72936

2232532-5

CONN HEADER VERT 5POS 5MM

2232532-5 Datasheet
  • 1: $1.27000
  • 10: $1.12932
  • 100: $0.98542

9-146277-0-07

CONN HEADER VERT 7POS 2.54MM

9-146277-0-07 Datasheet
  • 1: $1.27000
  • 10: $1.11286
  • 25: $1.04786

PEC14DAAN

CONN HEADER VERT 28POS 2.54MM

PEC14DAAN Datasheet
  • 1: $1.27000
  • 10: $1.11900
  • 25: $1.05280

0022284183

CONN HEADER VERT 18POS 2.54MM

0022284183 Datasheet
  • 1: $1.27000
  • 10: $1.11400
  • 25: $1.04840

PBC16SAAN

CONN HEADER VERT 16POS 2.54MM

PBC16SAAN Datasheet
  • 1: $1.27000
  • 10: $1.11500
  • 25: $1.04960

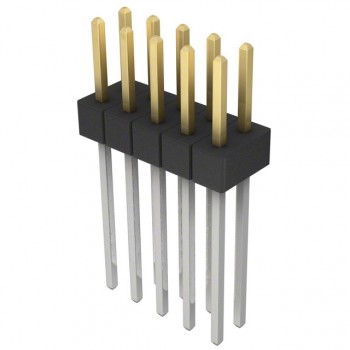

PBC05DAEN
