929834-03-12

3M
In Stock: 370

Can ship immediately

Pricing:
  • 1$1.4
  • 10$1.232
  • 25$1.1596
  • 50$1.1114
  • 100$1.063
  • 250$0.9664
  • 500$0.86976

Quote It

Technical Details

  • Series:929
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:12
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.235" (5.97mm)



  • Contact Length - Post:0.410" (10.41mm)
  • Overall Contact Length:0.745" (18.92mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin-Lead
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:-
  • Contact Material:Copper Alloy
  • Insulation Material:Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.5A
  • Voltage Rating:-

Related Products


1775469-4

CONN HEADER SMD R/A 4POS 2MM

1775469-4 Datasheet
  • 1: $1.40000
  • 600: $0.95657
  • 1200: $0.86093

1-1586042-2

CONN HEADER R/A 12POS 4.2MM

1-1586042-2 Datasheet
  • 1: $1.40000
  • 10: $1.23816
  • 150: $1.08061

0022284203

CONN HEADER VERT 20POS 2.54MM

0022284203 Datasheet
  • 1: $1.41000
  • 10: $1.23800
  • 25: $1.16480

0901310127

CONN HEADER VERT 14POS 2.54MM

0901310127 Datasheet
  • 1: $1.41000
  • 10: $1.23963
  • 25: $1.16638

2059571071

1.25WB MLP PTG SR ST ASSY 10CKT

  • 1: $1.41000

67997-132HLF

CONN HEADER VERT 32POS 2.54MM

67997-132HLF Datasheet
  • 1: $1.41000
  • 10: $1.28135
  • 100: $1.09815

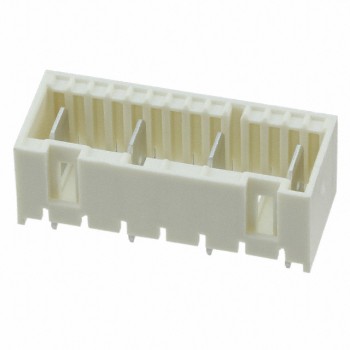

2232511-7

CONN HEADER VERT 7POS 5MM

2232511-7 Datasheet
  • 1: $1.41000
  • 10: $1.29421
  • 100: $1.12314

9-103323-0-09

CONN HEADER R/A 9POS 2.54MM

9-103323-0-09 Datasheet
  • 1: $1.41000
  • 10: $1.23830
  • 25: $1.16530

929835-01-20

CONN HEADER R/A 20POS 2.54MM

929835-01-20 Datasheet
  • 1: $1.41000
  • 10: $1.28100
  • 25: $1.20200

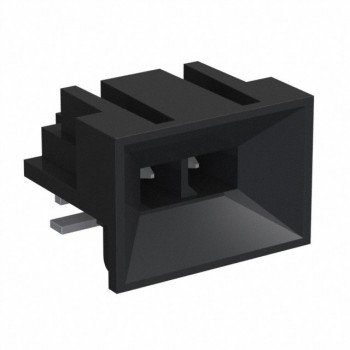

0466220200
