929647-05-04-I

3M
In Stock: 767

Can ship immediately

Pricing:
  • 1$1.42
  • 10$1.248
  • 25$1.1752
  • 50$1.126
  • 100$1.0771
  • 250$0.9792
  • 500$0.88128

Quote It

Technical Details

  • Series:929
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:4
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.235" (5.97mm)



  • Contact Length - Post:0.610" (15.49mm)
  • Overall Contact Length:0.945" (24.00mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Copper Alloy
  • Insulation Material:Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.5A
  • Voltage Rating:-

Related Products


9-146278-0-16

CONN HEADER VERT 16POS 2.54MM

9-146278-0-16 Datasheet
  • 1: $1.42000
  • 10: $1.24678
  • 25: $1.17387

929647-03-04-I

CONN HEADER VERT 4POS 2.54MM

929647-03-04-I Datasheet
  • 1: $1.42000
  • 10: $1.24800
  • 25: $1.17520

929647-02-04-I

CONN HEADER VERT 4POS 2.54MM

929647-02-04-I Datasheet
  • 1: $1.42000
  • 10: $1.24800
  • 25: $1.17520

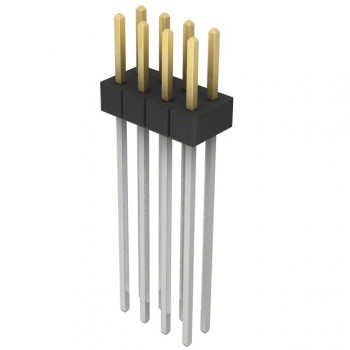

PBC04DAHN

CONN HEADER VERT 8POS 2.54MM

PBC04DAHN Datasheet
  • 1: $1.42000
  • 10: $1.24400
  • 25: $1.17120

9-102975-0-06

CONN HEADER R/A 12POS 2.54MM

  • 1: $1.42000
  • 10: $1.24694
  • 25: $1.17372

800-10-005-61-001000

CONN HEADER VERT 5POS 2.54MM

800-10-005-61-001000 Datasheet
  • 1: $1.42000
  • 10: $1.25090
  • 25: $1.17719

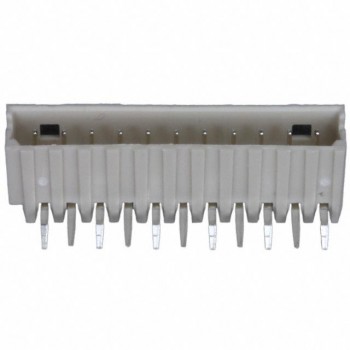

0530151110

CONN HEADER R/A 11POS 2MM

0530151110 Datasheet
  • 1: $1.42000
  • 500: $0.77688

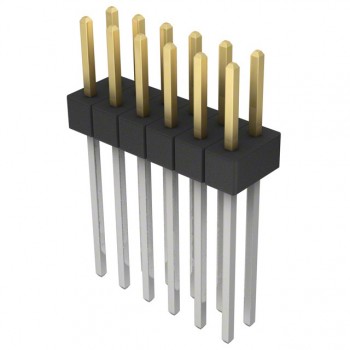

PBC06DAEN
