0554601272

Woodhead - Molex
In Stock: 993

Can ship immediately

Pricing:
  • 1$1.43

Quote It

Technical Details

  • Series:Mi II 55460
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:12
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.276" (7.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Solder Retention
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


641215-5

CONN HEADER VERT 5POS 2.54MM

641215-5 Datasheet
  • 1: $1.43000
  • 10: $1.30577
  • 100: $1.13310

DF14A-10P-1.25H(26)

CONN HEADER SMD R/A 10POS 1.25MM

  • 1: $1.43000
  • 1000: $0.87210

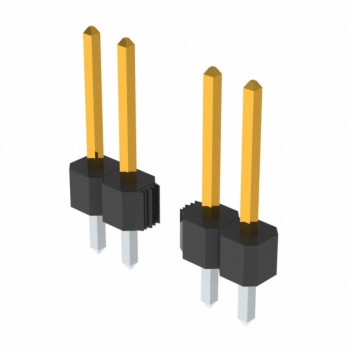

PBC18SFAN

CONN HEADER VERT 18POS 2.54MM

PBC18SFAN Datasheet
  • 1: $1.43000
  • 10: $1.25500
  • 25: $1.18080

9-103326-0-07

CONN HEADER R/A 14POS 2.54MM

9-103326-0-07 Datasheet
  • 1: $1.43000
  • 10: $1.25679
  • 25: $1.18307

DF11Z-12DP-2V(27)

CONN HEADER SMD 12POS 2MM

DF11Z-12DP-2V(27) Datasheet
  • 1: $1.43000
  • 500: $0.89250
  • 1000: $0.76500

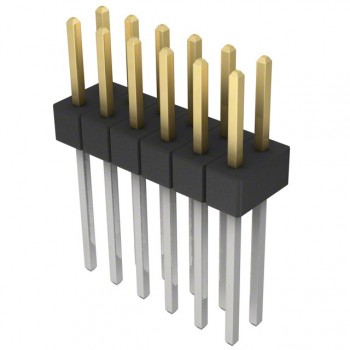

PBC06DADN

CONN HEADER VERT 12POS 2.54MM

PBC06DADN Datasheet
  • 1: $1.43000
  • 10: $1.26000
  • 25: $1.18560

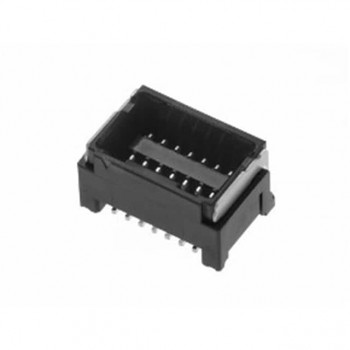

5054331291
