929710-01-08-RK

3M
In Stock: 509

Can ship immediately

Pricing:
  • 1$1.87
  • 10$1.699
  • 25$1.5948
  • 50$1.5254
  • 100$1.456
  • 250$1.31732
  • 500$1.21332

Quote It

Technical Details

  • Series:929
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:0.528" (13.42mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:200.0µin (5.08µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.5A
  • Voltage Rating:-

Related Products


1-1734595-2

CONN HEADER SMD 12POS 1MM

1-1734595-2 Datasheet
  • 1: $1.88000
  • 1000: $1.17040
  • 2000: $1.13598

4-103747-0-12

CONN HEADER VERT 12POS 2.54MM

4-103747-0-12 Datasheet
  • 1: $1.89000
  • 10: $1.71033
  • 25: $1.60580

PBC08DAEN

CONN HEADER VERT 16POS 2.54MM

PBC08DAEN Datasheet
  • 1: $1.89000
  • 10: $1.71800
  • 25: $1.61320

4-103186-0-10

CONN HEADER VERT 20POS 2.54MM

  • 1: $1.89000

961125-6404-AR

CONN HEADER VERT 25POS 2.54MM

961125-6404-AR Datasheet
  • 1: $1.89000
  • 10: $1.72565
  • 25: $1.62997

2-1445052-5

CONN HEADER SMD 5POS 3MM

2-1445052-5 Datasheet
  • 1: $1.89000
  • 630: $1.36598
  • 1260: $1.19087

1054302102

CONN HEADER SMD R/A 2POS 2.5MM

  • 1: $1.90000

98424-F52-10ALF

CONN HEADER SMD 10POS 2MM

98424-F52-10ALF Datasheet
  • 1: $1.90000
  • 600: $1.13960
  • 1200: $0.97680

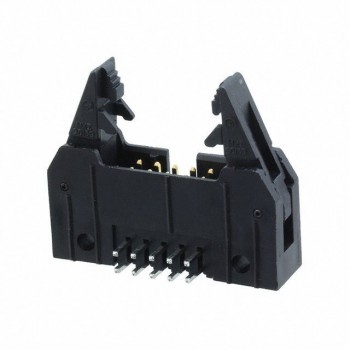

0906633102

CONN HEADER R/A 10POS 2.54MM

0906633102 Datasheet
  • 1: $1.90000
  • 10: $1.72239
  • 100: $1.47630

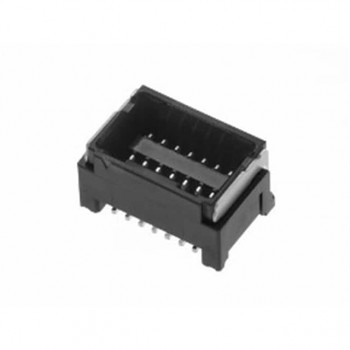

5054331691
