951226-8622-AR

3M
In Stock: 427

Can ship immediately

Pricing:
  • 1$2.27
  • 10$2.07412
  • 25$1.95916
  • 50$1.88209
  • 100$1.80529
  • 250$1.65168
  • 500$1.53642

Quote It

Technical Details

  • Series:951
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:26
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.173" (4.40mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:0.343" (8.70mm)
  • Insulation Height:0.060" (1.52mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A
  • Voltage Rating:-

Related Products


DF20G-20DP-1V(55)

CONN HEADER SMD 20POS 1MM

DF20G-20DP-1V(55) Datasheet
  • 1: $2.27000
  • 10: $2.07282
  • 100: $1.79974

GT8E-8P-DS(28)

CONN HEADER R/A 8POS 2MM

GT8E-8P-DS(28) Datasheet
  • 1: $2.27000
  • 10: $2.05751
  • 25: $1.93126

MDF6-10DP-3.5DS(05)

CONN HEADER R/A 10POS 3.5MM

MDF6-10DP-3.5DS(05) Datasheet
  • 1: $2.27000
  • 10: $2.05751
  • 25: $1.93126

DF20F-20DP-1V(55)

CONN HEADER SMD 20POS 1MM

DF20F-20DP-1V(55) Datasheet
  • 1: $2.27000
  • 10: $2.07282
  • 100: $1.79974

802-10-006-20-001000

CONN HEADER R/A 6POS 2.54MM

802-10-006-20-001000 Datasheet
  • 1: $2.28000
  • 10: $2.06648
  • 25: $1.94029

929834-03-21

CONN HEADER VERT 21POS 2.54MM

929834-03-21 Datasheet
  • 1: $2.28000
  • 10: $2.07200
  • 25: $1.94480

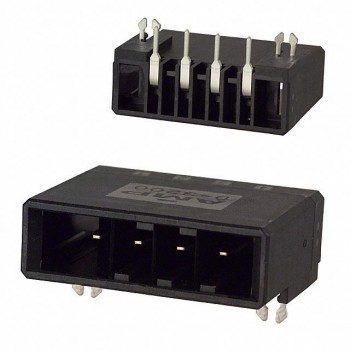

1-179277-2
