929647-02-07-I

3M
In Stock: 2,544

Can ship immediately

Pricing:
  • 1$2.31
  • 10$2.099
  • 25$1.9708
  • 50$1.885
  • 100$1.7993
  • 250$1.62792
  • 500$1.4994

Quote It

Technical Details

  • Series:929
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:7
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.235" (5.97mm)



  • Contact Length - Post:0.210" (5.33mm)
  • Overall Contact Length:0.545" (13.84mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Copper Alloy
  • Insulation Material:Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.5A
  • Voltage Rating:-

Related Products


929647-05-07-I

CONN HEADER VERT 7POS 2.54MM

929647-05-07-I Datasheet
  • 1: $2.31000
  • 10: $2.09900
  • 25: $1.97080

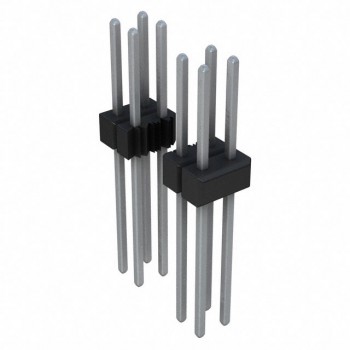

PEC05DFEN

CONN HEADER VERT 10POS 2.54MM

PEC05DFEN Datasheet
  • 1: $2.31000
  • 10: $2.06300
  • 100: $1.69870

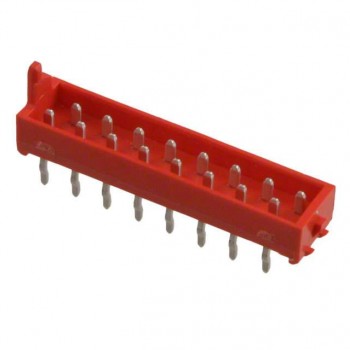

8-215464-6

CONN HEADER VERT 16POS 2.54MM

8-215464-6 Datasheet
  • 1: $2.31000
  • 250: $1.54116
  • 500: $1.41948

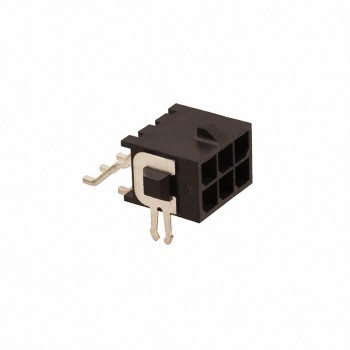

3-794624-6
