0026482091
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 9POS 3.96MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0026482091 Datasheet
-
ECAD Model
- Share
In Stock: 481
Can ship immediately
Pricing:
- 1$5.2
- 10$4.70984
- 25$4.42085
- 50$4.2282
- 100$4.03618
- 250$3.65176
- 500$3.36346
Quote It
Technical Details
- Series:KK396, 41661
- Package:Bulk
- Part Status:Active
- Connector Type:Header, Breakaway
- Contact Type:Male Pin
- Pitch - Mating:0.156" (3.96mm)
- Number of Positions:9
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.450" (11.43mm)
- Contact Length - Post:0.172" (4.37mm)
- Overall Contact Length:0.750" (19.05mm)
- Insulation Height:0.128" (3.25mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:20.0µin (0.51µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyester, Glass Filled
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
Related Products

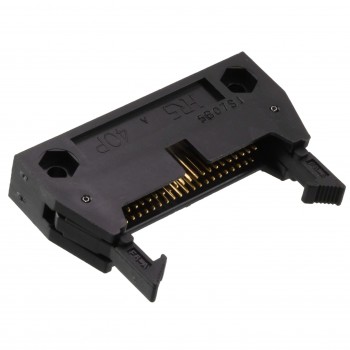

CONN HEADER VERT 40POS 2.54MM

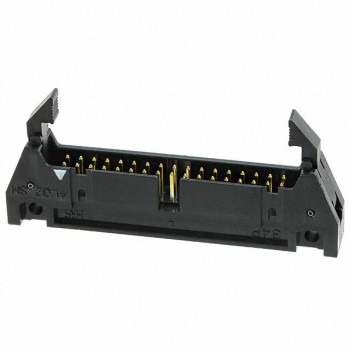

HIF3BAF-40PA-2.54DSA(71) Datasheet- 1: $5.33000
