0026482101

Woodhead - Molex
In Stock: 841

Can ship immediately

Pricing:
  • 1$5.77
  • 10$5.52863
  • 25$5.06749
  • 50$4.8376
  • 100$4.60703
  • 250$4.03118
  • 500$3.91597

Quote It

Technical Details

  • Series:KK396, 41661
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Positions:10
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.450" (11.43mm)



  • Contact Length - Post:0.172" (4.37mm)
  • Overall Contact Length:0.750" (19.05mm)
  • Insulation Height:0.128" (3.25mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:20.0µin (0.51µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


0010897502

CONN HEADER VERT 50POS 2.54MM

0010897502 Datasheet
  • 1: $5.77000
  • 10: $5.53700
  • 25: $5.07600

9-146308-0-12

CONN HEADER R/A 24POS 2.54MM

9-146308-0-12 Datasheet
  • 1: $5.80000
  • 10: $5.57276
  • 25: $5.10876

PEC16DFDN

CONN HEADER VERT 32POS 2.54MM

PEC16DFDN Datasheet
  • 1: $5.85000
  • 10: $5.23400
  • 100: $4.31020

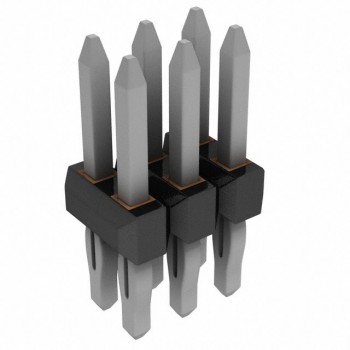

0751020080

CONN HEADER VERT 6POS 2.54MM

0751020080 Datasheet
  • 1: $5.86000
  • 10: $5.62791
  • 25: $5.15848

4-103783-0-14

CONN HEADER VERT 28POS 2.54MM

4-103783-0-14 Datasheet
  • 1: $5.90000
  • 10: $5.66162
  • 25: $5.19041

929715-01-11-I

CONN HEADER VERT 22POS 2.54MM

929715-01-11-I Datasheet
  • 1: $5.97000
  • 10: $5.73100
  • 25: $5.25320

929715-11-11-I

CONN HEADER VERT 22POS 2.54MM

929715-11-11-I Datasheet
  • 1: $5.97000
  • 10: $5.73100
  • 25: $5.25320

929715-10-11-I

CONN HEADER VERT 22POS 2.54MM

929715-10-11-I Datasheet
  • 1: $5.97000
  • 10: $5.73100
  • 25: $5.25320

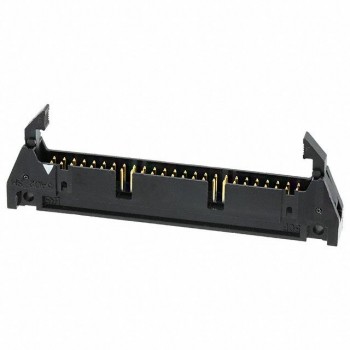

HIF3BAF-50PA-2.54DS(71)
