929715-01-25-I

3M
In Stock: 601

Can ship immediately

Pricing:
  • 1$11.94
  • 10$10.853
  • 25$10.582
  • 50$9.768
  • 100$9.2253
  • 250$8.41132
  • 500$7.86868

Quote It

Technical Details

  • Series:929
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:50
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:0.528" (13.42mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Copper Alloy
  • Insulation Material:Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.5A
  • Voltage Rating:-

Related Products

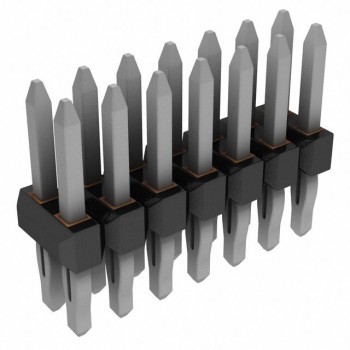

0751020084

CONN HEADER VERT 14POS 2.54MM

0751020084 Datasheet
  • 1: $12.03000
  • 10: $10.93827
  • 25: $10.66450

09185507927

CONN HEADER VERT 50POS 2.54MM

09185507927 Datasheet
  • 1: $13.73000
  • 10: $12.47815
  • 25: $12.16640

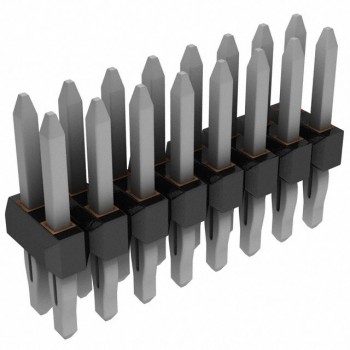

0751020085

CONN HEADER VERT 16POS 2.54MM

0751020085 Datasheet
  • 1: $13.75000
  • 10: $12.49885
  • 25: $12.18691

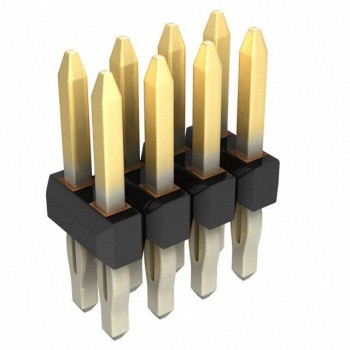

0751020042

CONN HEADER VERT 8POS 2.54MM

0751020042 Datasheet
  • 1: $13.76000
  • 10: $12.51200
  • 25: $12.19920

3-103233-9

CONN HEADER VERT 80POS 2.54MM

3-103233-9 Datasheet
  • 1: $14.56000
  • 10: $13.23225
  • 100: $11.24720

DTP15-4P

RECP ASM

  • 1: $11.70000

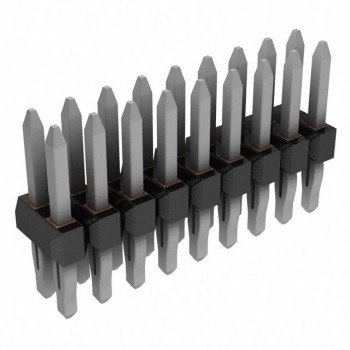

0751020086

CONN HEADER VERT 18POS 2.54MM

0751020086 Datasheet
  • 1: $15.47000
  • 10: $14.06049
  • 25: $13.70890

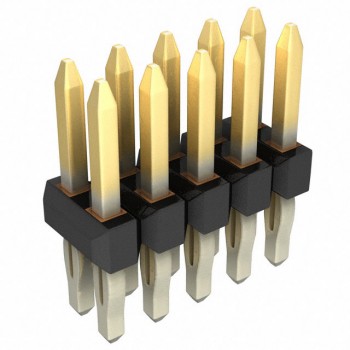

0751020043

CONN HEADER VERT 10POS 2.54MM

0751020043 Datasheet
  • 1: $15.77000
  • 10: $14.63900
  • 25: $13.13760

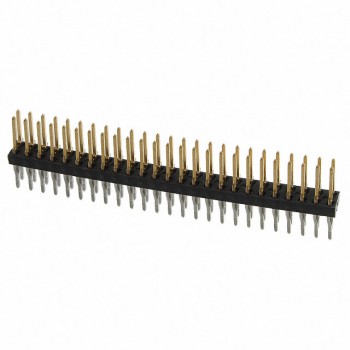

2-103542-4
