N2526-6V0C-RB-WE

3M
In Stock: 929

Can ship immediately

Pricing:
  • 1$5.36
  • 200$3.968
  • 400$3.472
  • 600$3.3728
  • 1,000$2.8768
  • 2,000$2.7776

Quote It

Technical Details

  • Series:2500
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:26
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.243" (6.17mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.390" (9.91mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
  • Features:Keying Slot, Pick and Place
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1.75A
  • Voltage Rating:-

Related Products


5-104074-3

CONN HEADER R/A 15POS 1.27MM

5-104074-3 Datasheet
  • 1: $4.34000
  • 10: $4.16640
  • 100: $3.47200

5499922-4

CONN HEADER VERT 20POS 2.54MM

5499922-4 Datasheet
  • 1: $4.44000
  • 10: $4.27505
  • 100: $3.61705

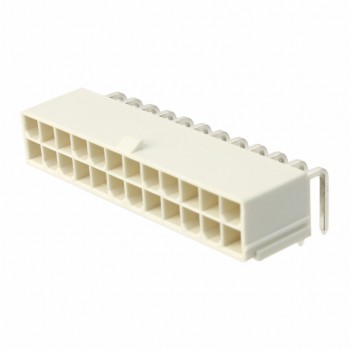

0874272402

CONN HEADER R/A 24POS 4.2MM

0874272402 Datasheet
  • 1: $4.61000
  • 10: $4.42701
  • 360: $3.22812

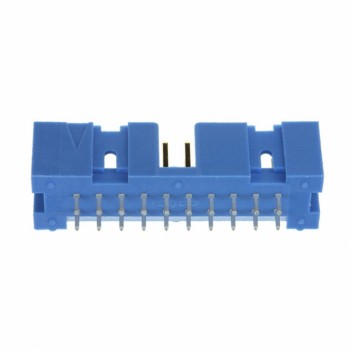

2-1761603-7

CONN HEADER VERT 20POS 2.54MM

2-1761603-7 Datasheet
  • 1: $5.01000
  • 10: $4.80814
  • 100: $4.00716

G125-MV11005L1P

CONN HEADER VERT 10POS 1.25MM

G125-MV11005L1P Datasheet
  • 1: $5.01000
  • 10: $4.80663
  • 100: $4.00588

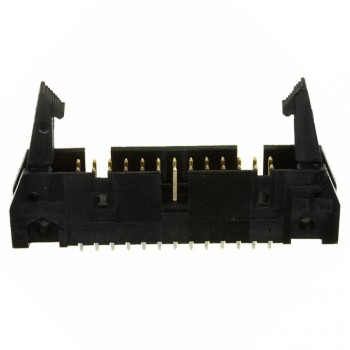

5499922-6

CONN HEADER VERT 26POS 2.54MM

5499922-6 Datasheet
  • 1: $5.11000
  • 10: $4.91993
  • 100: $4.16341

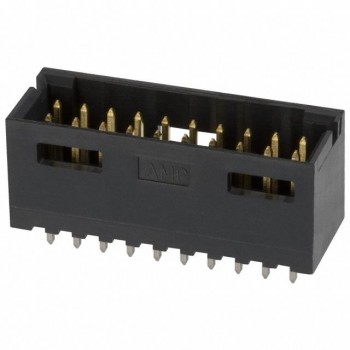

5-103168-8

CONN HEADER VERT 20POS 2.54MM

5-103168-8 Datasheet
  • 1: $5.30000
  • 88: $4.45279
  • 176: $4.24073

M80-8510642

CONN HEADER R/A 6POS 2MM

M80-8510642 Datasheet
  • 1: $5.33000
  • 26: $4.68566
  • 104: $4.25976

B06B-JWPF-SK-R(LF)(SN)

CONN HEADER VERT 6POS 2MM

  • 1: $5.61000
  • 10: $5.37871
  • 100: $4.44350

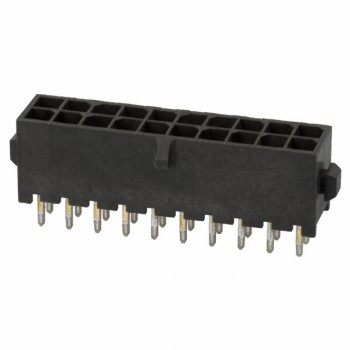

5-794632-0
