PH2-06-UA
Adam Tech
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 6POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 183
Can ship immediately
Pricing:
- 1$0.12
- 10$0.11673
- 100$0.07211
- 500$0.05969
- 1,000$0.05223
- 5,000$0.04477
- 10,000$0.04353
Quote It
Technical Details
- Series:PH2
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:6
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.235" (5.97mm)
- Contact Length - Post:0.120" (3.05mm)
- Overall Contact Length:0.453" (11.50mm)
- Insulation Height:0.098" (2.50mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:Flash
- Contact Finish - Post:Gold
- Contact Material:Brass
- Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
- Features:-
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:250VAC
Related Products
CONN HEADER R/A 4POS 2.54MM
- 1: $0.15000
- 10: $0.13700
- 100: $0.08440

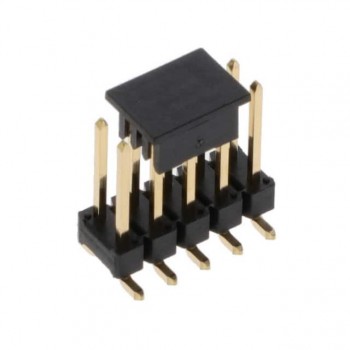

CONN HEADER SMD 10POS 2.54MM
- 1: $0.27000
- 1200: $0.27000

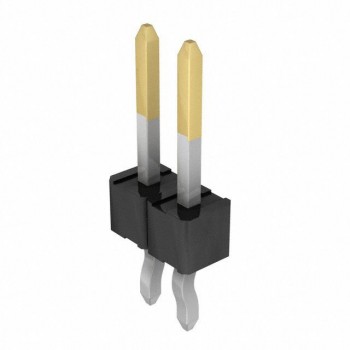

CONN HEADER R/A 2POS 2.5MM
