PH1-16-UA

Adam Tech
In Stock: 131

Can ship immediately

Pricing:
  • 1$0.25
  • 10$0.2375
  • 100$0.1649
  • 500$0.13956
  • 1,000$0.11419
  • 5,000$0.1015
  • 10,000$0.09199

Quote It

Technical Details

  • Series:PH1
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.236" (6.00mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.454" (11.54mm)
  • Insulation Height:0.098" (2.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:250VAC

Related Products


B03B-XASK-1-A(LF)(SN)

CONN HEADER VERT 3POS 2.5MM

  • 1: $0.25000
  • 10: $0.23800
  • 100: $0.16520

B5B-XH-AM(LF)(SN)

CONN HEADER VERT 5POS 2.5MM

B5B-XH-AM(LF)(SN) Datasheet
  • 1: $0.26000
  • 10: $0.24300
  • 100: $0.16880

SM02(4.0)B-BHS-1-TB(LF)(SN)

CONN HEADER SMD R/A 2POS 4MM

SM02(4.0)B-BHS-1-TB(LF)(SN) Datasheet
  • 1: $0.51000
  • 1000: $0.26178
  • 2000: $0.25385

BM05B-AUHKS-GA-TB(LF)(SN)

CONN HEADER SMD R/A 5POS

BM05B-AUHKS-GA-TB(LF)(SN) Datasheet
  • 1: $0.59000
  • 5000: $0.26629
  • 10000: $0.24792

69192-202HLF

CONN HEADER VERT 2POS

69192-202HLF Datasheet
  • 1: $0.27000
  • 10: $0.25746
  • 100: $0.18225

68015-405HLF

CONN HEADER R/A 5POS 2.54MM

68015-405HLF Datasheet
  • 1: $0.27000
  • 10: $0.25164
  • 100: $0.17464

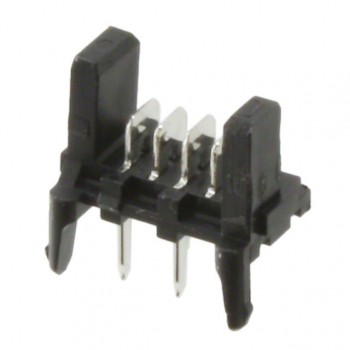

0903250004

CONN HEADER VERT 4POS 1.27MM

0903250004 Datasheet
  • 1: $0.27000
  • 10: $0.25300
  • 100: $0.17710

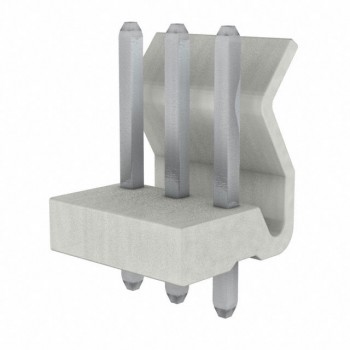

0009652038

CONN HEADER VERT 3POS 3.96MM

0009652038 Datasheet
  • 1: $0.27000
  • 10: $0.25554
  • 100: $0.18350

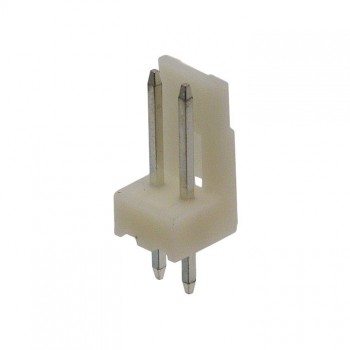

171825-2

CONN HEADER VERT 2POS 2.5MM

171825-2 Datasheet
  • 1: $0.27000
  • 10: $0.25500
  • 100: $0.18090

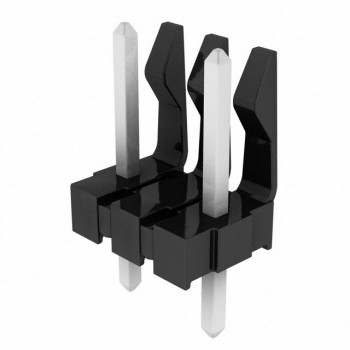

0026503030
