B5PS-VH(LF)(SN)
JST
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 5POS 3.96MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet B5PS-VH(LF)(SN) Datasheet
-
ECAD Model
- Share
In Stock: 122
Can ship immediately
Pricing:
- 1$0.44
- 10$0.414
- 100$0.2901
- 500$0.24868
- 1,000$0.20723
- 5,000$0.17763
- 10,000$0.16579
Quote It
Technical Details
- Series:VH
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.156" (3.96mm)
- Number of Positions:5
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 1 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:0.303" (7.70mm)
- Contact Length - Post:0.142" (3.60mm)
- Overall Contact Length:-
- Insulation Height:0.335" (8.51mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyamide (PA66), Nylon 6/6
- Features:-
- Operating Temperature:-25°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):10A
- Voltage Rating:250V
Related Products
CONN HEADER R/A 16POS 2.54MM
- 1: $0.45000
- 10: $0.42955
- 100: $0.30068
CONN HEADER VERT 20POS 2MM
- 1: $0.45000
- 10: $0.42955
- 100: $0.30068

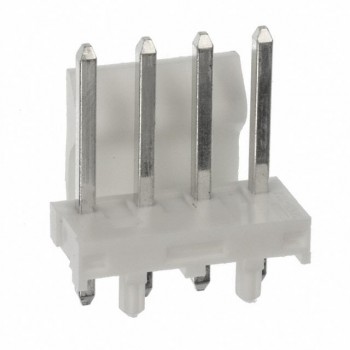

CONN HEADER VERT 4POS 3.96MM
