0010081041
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 4POS 5.08MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0010081041 Datasheet
-
ECAD Model
- Share
In Stock: 6,008
Can ship immediately
Pricing:
- 1$0.51
- 10$0.47813
- 100$0.36667
- 500$0.31881
- 1,000$0.26302
- 5,000$0.23114
- 10,000$0.2152
Quote It
Technical Details
- Series:KK508, 3003
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.200" (5.08mm)
- Number of Positions:4
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.470" (11.94mm)
- Contact Length - Post:0.155" (3.94mm)
- Overall Contact Length:0.750" (19.05mm)
- Insulation Height:0.125" (3.18mm)
- Contact Shape:Circular
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:100.0µin (2.54µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-2
- Insulation Color:Natural
- Current Rating (Amps):-
- Voltage Rating:-
Related Products

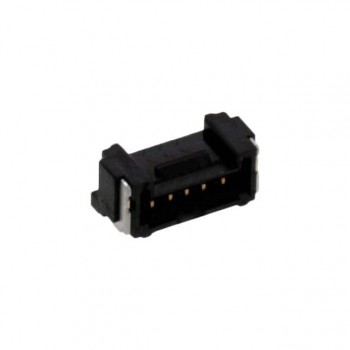

CONN HEADER SMD R/A 5POS 1.25MM
