MDF6-4DP-3.5DSA(05)
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 4POS 3.5MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet MDF6-4DP-3.5DSA(05) Datasheet
-
ECAD Model
- Share
In Stock: 119
Can ship immediately
Pricing:
- 1$0.75
- 10$0.65548
- 25$0.61644
- 50$0.59075
- 100$0.56507
- 250$0.5137
- 500$0.46233
- 1,000$0.41096
- 2,500$0.37243
Quote It
Technical Details
- Series:MDF6
- Package:Bulk
- Part Status:Last Time Buy
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.138" (3.50mm)
- Number of Positions:4
- Number of Rows:2
- Row Spacing - Mating:0.197" (5.00mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Latch Holder
- Contact Length - Mating:0.220" (5.59mm)
- Contact Length - Post:0.138" (3.50mm)
- Overall Contact Length:-
- Insulation Height:0.512" (13.00mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin-Copper
- Contact Finish Thickness - Mating:39.4µin (1.00µm)
- Contact Finish - Post:-
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon
- Features:-
- Operating Temperature:-30°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:White
- Current Rating (Amps):-
- Voltage Rating:300V
Related Products
CONN HEADER R/A 7POS 3.96MM
- 1: $0.77000
CONN HEADER VERT 5POS 2.5MM
- 1: $0.77000
- 80: $0.57475
- 160: $0.55088

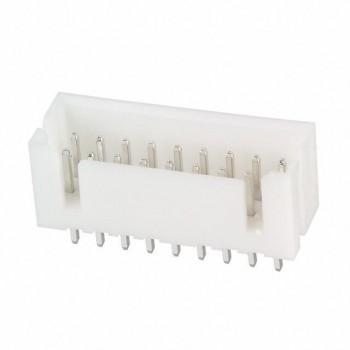

CONN HEADER VERT 18POS 2.5MM
