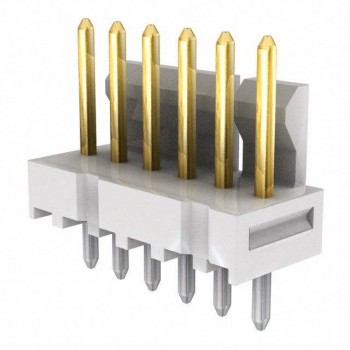

0022112066

Woodhead - Molex
In Stock: 6,146

Can ship immediately

Pricing:
  • 1$0.9
  • 10$0.788
  • 100$0.6798
  • 500$0.5562
  • 1,000$0.4944
  • 5,000$0.4326
  • 10,000$0.41097

Quote It

Technical Details

  • Series:KK254, 6373
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:6
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.187" (4.75mm)
  • Overall Contact Length:0.630" (16.00mm)
  • Insulation Height:0.322" (8.18mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:20.0µin (0.51µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:White
  • Current Rating (Amps):-
  • Voltage Rating:-
