1726480105
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 5POS 4.2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 1726480105 Datasheet
-
ECAD Model
- Share
In Stock: 103
Can ship immediately
Pricing:
- 1$1.14
- 10$1.004
- 25$0.9448
- 50$0.9052
- 100$0.8659
- 250$0.7872
- 500$0.70848
- 1,000$0.62976
- 2,500$0.57072
Quote It
Technical Details
- Series:Mini-Fit Jr 172648
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.165" (4.20mm)
- Number of Positions:5
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.138" (3.50mm)
- Overall Contact Length:-
- Insulation Height:0.213" (5.40mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:100.0µin (2.54µm)
- Contact Finish - Post:Tin
- Contact Material:Brass Alloy
- Insulation Material:Polyamide (PA), Nylon
- Features:Board Lock, Glow Wire Compliant
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-2
- Insulation Color:Black
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:600V
Related Products

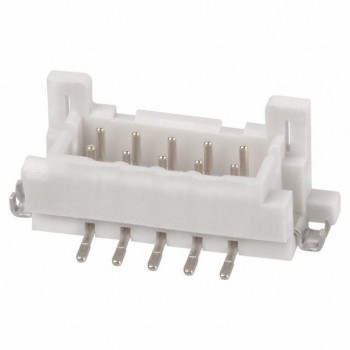

CONN HEADER SMD 10POS 1.27MM
