In Stock: 164

Can ship immediately

Pricing:
  • 1$2.56
  • 28$2.18282
  • 112$1.99287
  • 504$1.66076
  • 1,008$1.42351
  • 5,012$1.26218

Quote It

Technical Details

  • Series:Minitek® 2.00mm
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:20
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.157" (4.00mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.157" (4.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A (AC/DC)
  • Voltage Rating:200V (AC/DC)

Related Products


6-103635-1

CONN HEADER R/A 12POS 2.54MM

6-103635-1 Datasheet
  • 1: $2.57000
  • 16: $2.33241
  • 112: $1.99902

4-794677-2

CONN HEADER R/A 12POS 3MM

4-794677-2 Datasheet
  • 1: $2.60000
  • 10: $2.36228
  • 169: $2.02442

M80-8540645

CONN HEADER VERT 6POS 2MM

M80-8540645 Datasheet
  • 1: $2.60000
  • 26: $2.21723
  • 104: $2.02453

0901210780

CONN HEADER R/A 20POS 2.54MM

0901210780 Datasheet
  • 1: $2.62000
  • 10: $2.51581
  • 100: $2.09661

5-102567-1

CONN HEADER VERT 12POS 2.54MM

5-102567-1 Datasheet
  • 1: $2.63000
  • 80: $2.14215
  • 160: $2.04477

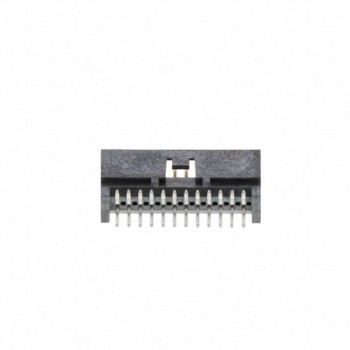

2009890024

CONN HEADER SMD 24POS 1.27MM

2009890024 Datasheet
  • 1: $2.64000
  • 29: $2.32655
  • 116: $2.11517

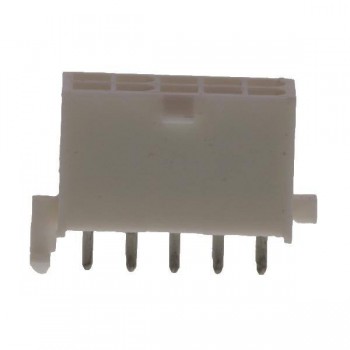

1-770743-0

CONN HEADER VERT 10POS 4.14MM

1-770743-0 Datasheet
  • 1: $2.65000
  • 10: $2.54107
  • 100: $2.11759

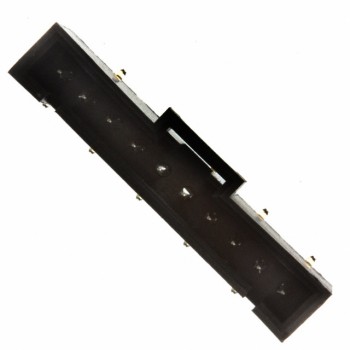

0740990010
