174973-2
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 12POS 2.5MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 174973-2 Datasheet
-
ECAD Model
- Share
In Stock: 130
Can ship immediately
Pricing:
- 1$3.28
- 90$2.75932
- 180$2.62788
- 540$2.2337
- 1,080$1.90522
- 5,040$1.70813
Quote It
Technical Details
- Series:Multi-Lock
- Package:Bulk
- Part Status:Active
- Connector Type:-
- Contact Type:Tab
- Pitch - Mating:0.098" (2.50mm)
- Number of Positions:12
- Number of Rows:2
- Row Spacing - Mating:0.205" (5.20mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:0.276" (7.00mm)
- Contact Length - Post:0.146" (3.70mm)
- Overall Contact Length:-
- Insulation Height:0.756" (19.20mm)
- Contact Shape:Rectangular
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polybutylene Terephthalate (PBT)
- Features:Mounting Flange
- Operating Temperature:-30°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Black
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:-
Related Products

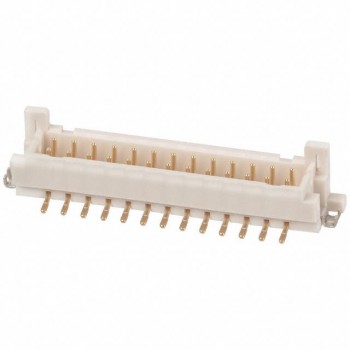

CONN HEADER SMD 16POS 2.5MM
