BHR-20-VUA-ML

Adam Tech
In Stock: 162

Can ship immediately

Pricing:
  • 1$2.42
  • 10$2.19413
  • 160$1.88035
  • 640$1.56695
  • 1,120$1.3431
  • 5,120$1.19088

Quote It

Technical Details

  • Series:BHR
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:20
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:-
  • Insulation Height:0.358" (9.10mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
  • Features:Keying Slot
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:250VAC

Related Products


62401021622

CONN HEADER VERT 10POS 2MM

  • 1: $2.42000
  • 10: $2.09400
  • 100: $1.91000

09185207323

CONN HEADER R/A 20POS 2.54MM

09185207323 Datasheet
  • 1: $2.46000
  • 10: $2.23552
  • 25: $2.09838

1-640389-6

CONN HEADER R/A 16POS 3.96MM

1-640389-6 Datasheet
  • 1: $2.47000
  • 10: $2.24500
  • 100: $1.92440

1-103735-1

CONN HEADER VERT 12POS 2.54MM

1-103735-1 Datasheet
  • 1: $2.49000
  • 16: $2.26322
  • 112: $1.93961

0348260201

CONN HEADER R/A 20POS 2MM

0348260201 Datasheet
  • 1: $2.51000
  • 10: $2.28640
  • 400: $1.81182

1723102206

CONN HEADER R/A 6POS 3.5MM

1723102206 Datasheet
  • 1: $2.50000
  • 10: $2.40400
  • 100: $2.00300

0039310160

CONN HEADER VERT 16POS 4.2MM

0039310160 Datasheet
  • 1: $2.51000
  • 10: $2.27412
  • 100: $1.94963

20021611-00020T4LF

CONN HEADER VERT 20POS 1.27MM

20021611-00020T4LF Datasheet
  • 1: $2.51000
  • 10: $2.27700
  • 400: $1.76548

69168-122HLF

CONN HEADER VERT 22POS 2.54MM

69168-122HLF Datasheet
  • 1: $2.52000
  • 10: $2.28500
  • 100: $1.95890

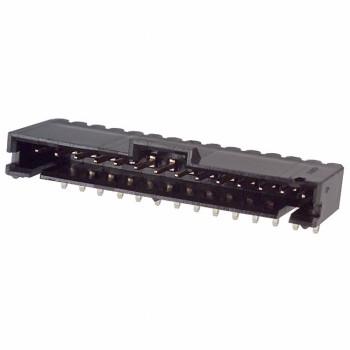

6-103635-3
