MX34R24HF4T

JAE Electronics
In Stock: 891

Can ship immediately

Pricing:
  • 1$3.11
  • 10$2.98075
  • 100$2.48396
  • 576$2.11138
  • 1,152$1.80087
  • 5,184$1.61457

Quote It

Technical Details

  • Series:MX34R
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.087" (2.20mm)
  • Number of Positions:24
  • Number of Rows:2
  • Row Spacing - Mating:0.118" (3.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:0.303" (7.70mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.543" (13.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyphenylene Sulfide (PPS), Glass Filled
  • Features:Solder Retention
  • Operating Temperature:-40°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


0877592850

CONN HEADER SMD 28POS 2MM

  • 1: $3.10000

1-826632-6

CONN HEADER VERT 32POS 2.54MM

1-826632-6 Datasheet
  • 1: $3.15000
  • 10: $3.02517
  • 100: $2.52088

09185205324

CONN HEADER VERT 20POS 2.54MM

09185205324 Datasheet
  • 1: $3.18000
  • 10: $3.04710
  • 25: $2.79318

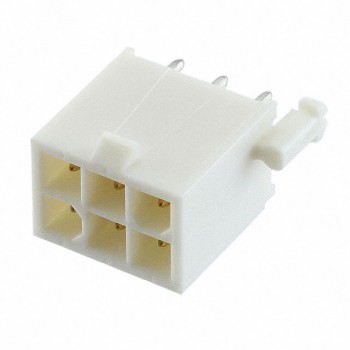

770875-2

CONN HEADER VERT 6POS 4.14MM

770875-2 Datasheet
  • 1: $3.18000
  • 10: $3.05511
  • 100: $2.54620

0307004200

CONN HEADER VERT 20POS 2.54MM

0307004200 Datasheet
  • 1: $3.18000
  • 10: $3.05600
  • 100: $2.54680

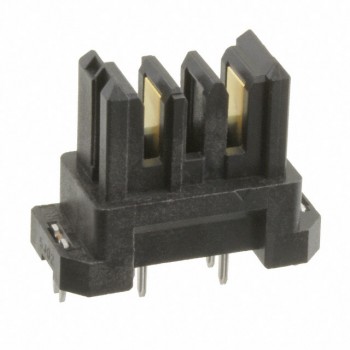

FX30B-2P-7.62DSA25

CONN HEADER VERT 2POS 7.62MM

FX30B-2P-7.62DSA25 Datasheet
  • 1: $3.23000
  • 10: $3.10080
  • 252: $2.26100

852-10-024-10-001101

CONN HEADER VERT 24POS 1.27MM

852-10-024-10-001101 Datasheet
  • 1: $3.33000
  • 10: $3.19500
  • 200: $2.66229

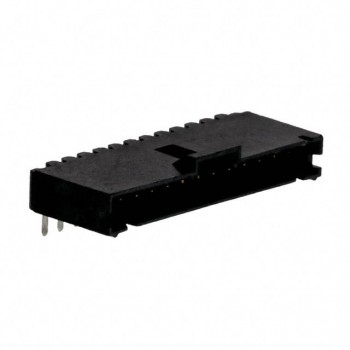

1-103635-2

CONN HEADER R/A 13POS 2.54MM

1-103635-2 Datasheet
  • 1: $3.38000
  • 10: $3.24820
  • 100: $2.70698

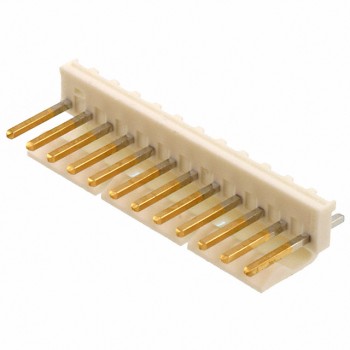

0417910842

CONN HEADER VERT 12POS 3.96MM

0417910842 Datasheet
  • 1: $3.38000
  • 10: $3.24800
  • 100: $2.70680

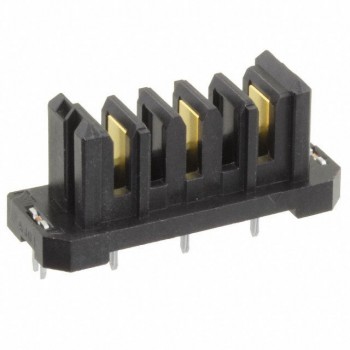

FX30B-3P-7.62DSA20
