09185507324

HARTING
In Stock: 123

Can ship immediately

Pricing:
  • 1$4.6
  • 10$4.41059
  • 25$4.04304
  • 50$3.85926
  • 100$3.67549
  • 250$3.21608
  • 500$3.12417
  • 1,000$2.66473

Quote It

Technical Details

  • Series:SEK
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:50
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.242" (6.15mm)



  • Contact Length - Post:0.114" (2.90mm)
  • Overall Contact Length:-
  • Insulation Height:0.350" (8.89mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
  • Features:Keying Slot
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Gray
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


1722991216

CONN HEADER VERT 16POS 3.5MM

1722991216 Datasheet
  • 1: $4.63000
  • 10: $4.43693
  • 100: $3.66532

XG4A-5074

CONN HEADER R/A 50POS 2.54MM

XG4A-5074 Datasheet
  • 1: $4.65000
  • 10: $4.46867
  • 100: $3.72400

0307005241

CONN HEADER R/A 24POS

0307005241 Datasheet
  • 1: $4.71000
  • 10: $4.52302
  • 100: $3.76942

1723162310

CONN HEADER R/A 10POS 3.5MM

1723162310 Datasheet
  • 1: $4.69000
  • 10: $4.50100
  • 100: $3.75060

4-103329-2

CONN HEADER R/A 40POS 2.54MM

4-103329-2 Datasheet
  • 1: $4.69000
  • 10: $4.50305
  • 100: $3.75286

3-826953-6

CONN HEADER R/A 72POS 2.54MM

3-826953-6 Datasheet
  • 1: $4.79000
  • 10: $4.59900
  • 100: $3.83240

M80-8692622

CONN HEADER VERT 26POS 2MM

M80-8692622 Datasheet
  • 1: $4.88000
  • 16: $4.68000
  • 104: $3.90000

770968-2

CONN HEADER R/A 4POS 4.14MM

770968-2 Datasheet
  • 1: $4.93000
  • 10: $4.73598
  • 100: $3.94686

174979-2

CONN HEADER VERT 28POS 2.5MM

174979-2 Datasheet
  • 1: $4.93000
  • 10: $4.72611
  • 100: $3.90418

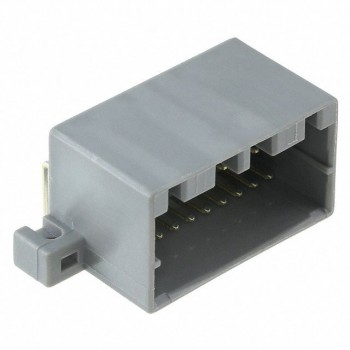

0681512025
