MX34R36HF4T

JAE Electronics
In Stock: 155

Can ship immediately

Pricing:
  • 1$5.18
  • 10$4.96795
  • 480$3.62247
  • 960$3.20847
  • 1,440$3.00147

Quote It

Technical Details

  • Series:MX34R
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.087" (2.20mm)
  • Number of Positions:36
  • Number of Rows:2
  • Row Spacing - Mating:0.118" (3.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:0.303" (7.70mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.543" (13.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyphenylene Sulfide (PPS), Glass Filled
  • Features:Solder Retention
  • Operating Temperature:-40°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products

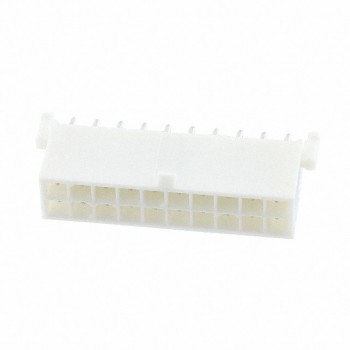

1-794077-0

CONN HEADER VERT 20POS 4.14MM

1-794077-0 Datasheet
  • 1: $5.14000
  • 10: $4.93334
  • 100: $4.11115

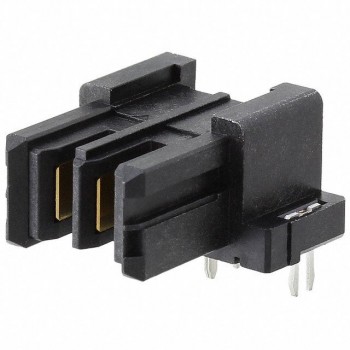

FX30B-2P-3.81DS

CONN HEADER R/A 2POS 3.81MM

FX30B-2P-3.81DS Datasheet
  • 1: $5.25000
  • 28: $4.61524
  • 112: $4.19574

09185405324

CONN HEADER VERT 40POS 2.54MM

09185405324 Datasheet
  • 1: $5.25000
  • 10: $5.04000
  • 25: $4.62000

XG4A-6435

CONN HEADER R/A 64POS 2.54MM

XG4A-6435 Datasheet
  • 1: $5.27000
  • 10: $5.06603
  • 100: $4.28009

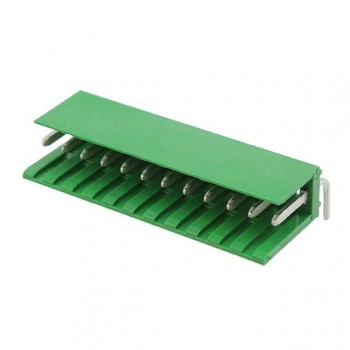

280620-1

CONN HEADER R/A 12POS 3.96MM

280620-1 Datasheet
  • 1: $5.43000
  • 10: $5.21300
  • 100: $4.34400

09185647324

CONN HEADER VERT 64POS 2.54MM

09185647324 Datasheet
  • 1: $5.62000
  • 10: $5.39009
  • 25: $4.94092

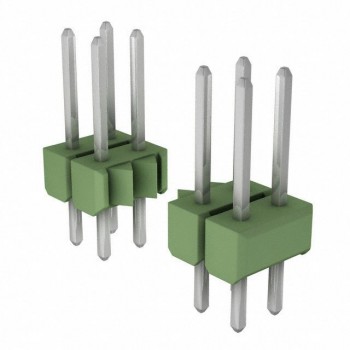

3-826925-6

CONN HEADER VERT 72POS 2.54MM

3-826925-6 Datasheet
  • 1: $5.71000
  • 10: $5.47621
  • 100: $4.56380

62402621622

CONN HEADER VERT 26POS 2MM

  • 1: $5.72000
  • 10: $4.95000
  • 100: $4.51400

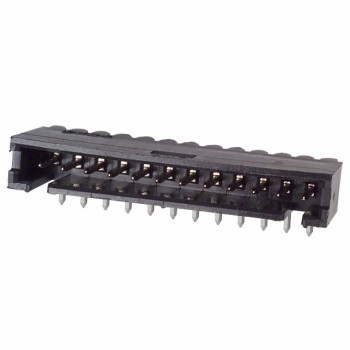

6-103361-0

CONN HEADER R/A 12POS 2.54MM

6-103361-0 Datasheet
  • 1: $5.89000
  • 16: $5.65049
  • 112: $4.70853

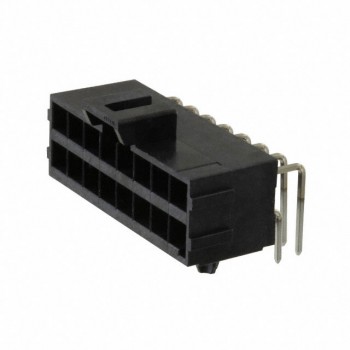

1723161316
