ATM15-6P-BM01

Tuchel / Amphenol
In Stock: 217

Can ship immediately

Pricing:
  • 1$8.53
  • 10$8.18824
  • 45$7.49697
  • 90$7.15148
  • 135$6.97872
  • 270$6.28782
  • 540$5.94232
  • 1,035$5.32044

Quote It

Technical Details

  • Series:BoardLock™ ATM
  • Package:Tray
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Male Pin
  • Pitch - Mating:-
  • Number of Positions:6
  • Number of Rows:2
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:-
  • Insulation Height:1.189" (30.20mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Gold
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Board Guide, Mating Flange, Mounting Flange
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:IP67
  • Material Flammability Rating:-
  • Insulation Color:Gray
  • Current Rating (Amps):7.5A
  • Voltage Rating:250V

Related Products

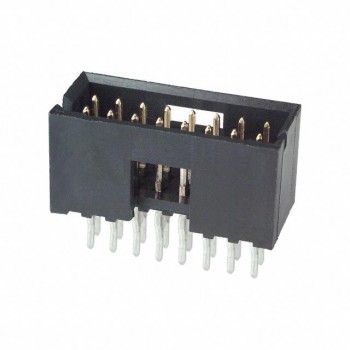

5-102699-7

CONN HEADER VERT 16POS 2.54MM

5-102699-7 Datasheet
  • 1: $9.01000
  • 10: $8.61595
  • 130: $7.24487

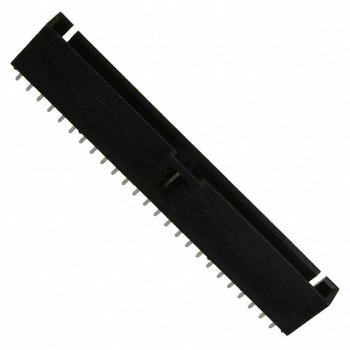

0705430024

CONN HEADER VERT 25POS 2.54MM

0705430024 Datasheet
  • 1: $9.01000
  • 10: $8.61600
  • 384: $6.46190

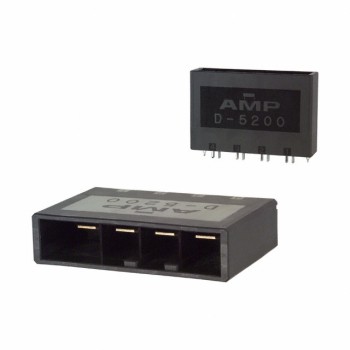

1-917542-3

CONN HEADER VERT 4POS 10.16MM

1-917542-3 Datasheet
  • 1: $9.16000
  • 10: $8.75918
  • 100: $7.36570

929665-02-36-EU

CONN HEADER VERT 72POS 2.54MM

929665-02-36-EU Datasheet
  • 1: $9.22000
  • 10: $8.81800
  • 100: $7.41480

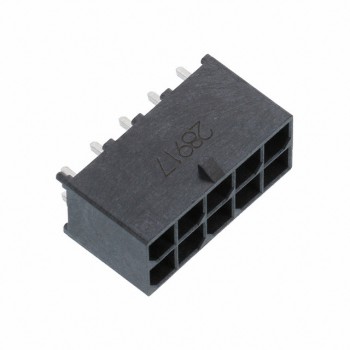

1720650310

CONN HEADER VERT 10POS 5.7MM

1720650310 Datasheet
  • 1: $9.57000
  • 54: $7.90755
  • 108: $7.69950

CWN-571-60-0060

CONN HEADER VERT 60POS 2.54MM

  • 1: $10.53000
  • 10: $10.07217
  • 100: $8.46978

SMS12RE4S6

CONN HEADER VERT 12POS 5.08MM

SMS12RE4S6 Datasheet
  • 1: $10.58000
  • 10: $10.12402
  • 100: $8.51338

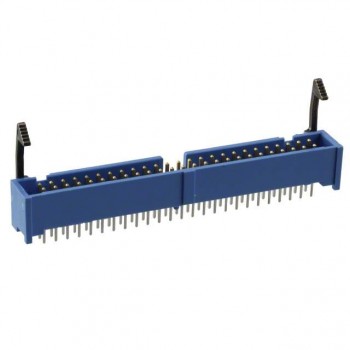

3-1761606-5

CONN HEADER VERT 50POS 2.54MM

3-1761606-5 Datasheet
  • 1: $10.82000
  • 14: $10.35180
  • 105: $8.70485

M80-5005005

CONN HEADER VERT 50POS 2MM

M80-5005005 Datasheet
  • 1: $10.90000
  • 12: $10.42833
  • 100: $8.76900

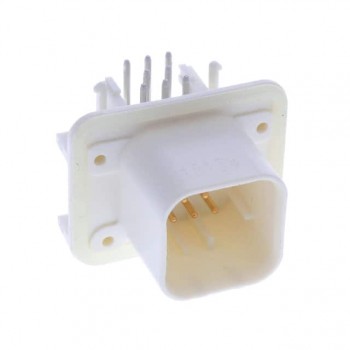

1-776280-2
