BHR-64-VUA

Adam Tech
In Stock: 124

Can ship immediately

Pricing:
  • 1$0.65

Quote It

Technical Details

  • Series:BHR
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:64
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:-
  • Insulation Height:0.346" (8.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:Keying Slot
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:250VAC

Related Products


G821EU210AGM00Y

BOX HEADER 2.54MM*2.54MM PITCH S

  • 1: $0.65000

BD030-10-A-A-0200-0300-L-G

10W, 1.27MM PITCH PIN HDR, DIL,

  • 1: $0.64000

3010-16-001-11-00

CONN HEADER VERT 16POS 2.54MM

3010-16-001-11-00 Datasheet
  • 1: $0.64800
  • 720: $0.64800

BM05B-XASS-TF(LF)(SN)

CONN HEADER SMD 5POS 2.5MM

  • 1: $1.04000
  • 500: $0.64822
  • 1000: $0.57619

54025-16-0200-01

WIRE-TO BOARD HEADER, 2.5MM, 16

  • 1: $0.65800

95278-102A06LF

CONN HEADER SMD 6POS 2.54MM

95278-102A06LF Datasheet
  • 1: $0.95000
  • 640: $0.54792

2092080004

HEADER ASSEMBLY FOR L1NK 300 - 1

  • 1: $0.67000

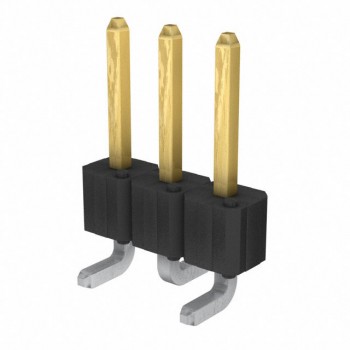

54201-G0803ALF

CONN HEADER SMD 3POS 2.54MM

54201-G0803ALF Datasheet
  • 1: $0.66720
  • 1200: $0.49368

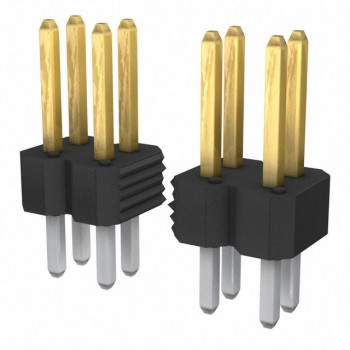

77313-102-14LF

CONN HEADER VERT 14POS 2.54MM

77313-102-14LF Datasheet
  • 1: $0.67000
  • 500: $0.38660

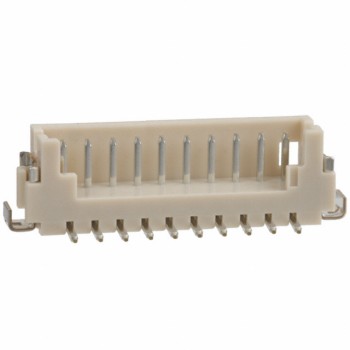

DF13E-10DP-1.25V(75)
