690357101072
Würth Elektronik Midcom
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 10POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 690357101072 Datasheet
-
ECAD Model
- Share
In Stock: 140
Can ship immediately
Pricing:
- 1$0.89
- 10$0.87688
- 100$0.84466
- 250$0.8128
- 500$0.73411
Quote It
Technical Details
- Series:WR-MM
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:10
- Number of Rows:2
- Row Spacing - Mating:0.059" (1.50mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Press-Fit, Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.122" (3.10mm)
- Overall Contact Length:-
- Insulation Height:0.276" (7.00mm)
- Contact Shape:Rectangular
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polybutylene Terephthalate (PBT)
- Features:-
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Red
- Current Rating (Amps):1.5A per Contact
- Voltage Rating:100V
Related Products
2.0 ST ASSY 4CKT ETP BK CV_GW PO
- 1: $1.30000
BOX HEADER 2.0MM PITCH STR SMT,2
- 1: $1.32000
CONN HEADER SMD R/A 4POS 2MM
- 1: $1.70000
- 1800: $0.84637

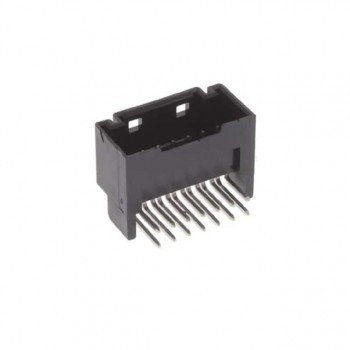

CONN HDR 2MM DUAL TIN R/A 14POS
