2059710083

Woodhead - Molex
In Stock: 150

Can ship immediately

Pricing:
  • 1$1.7

Quote It

Technical Details

  • Series:Micro-One 205971
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:8
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Latch Lock
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.390" (9.91mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin-Bismuth
  • Contact Finish Thickness - Mating:39.4µin (1.00µm)
  • Contact Finish - Post:Tin-Bismuth
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Solder Retention
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):4A per Contact
  • Voltage Rating:250VAC/DC

Related Products


2170630065

2.0 ST ASSY 6CKT ETP BK_GW POT

  • 1: $1.71000

DF13-9P-1.25V(76)

CONN HEADER SMD 9POS 1.25MM

DF13-9P-1.25V(76) Datasheet
  • 1: $1.22000
  • 10: $1.07276
  • 100: $0.92552

DF51K-20DP-2DS(800)

CONN HDR 2MM DUAL TIN R/A 20POS

  • 1: $1.23000

0015916060

CONN HEADER SMD 6POS 2.54MM

0015916060 Datasheet
  • 1: $1.75000
  • 6600: $0.86118

54102-T0808LF

CONN HEADER VERT 16POS 2.54MM

54102-T0808LF Datasheet
  • 1: $1.25000
  • 600: $0.79400

2170630075

2.0 ST ASSY 7CKT ETP BK_GW POT

  • 1: $1.79000

10155500-A308KLF

MINITEK MICROSPACEXS,1.27MM CRIM

  • 1: $1.68000

71918-208LF

CONN HEADER VERT 8POS 2.54MM

71918-208LF Datasheet
  • 1: $1.31000
  • 1020: $0.67040

G861B10212T9P1HR

PROTECT HEADER 2.0MM PITCH STR,2

  • 1: $1.33000

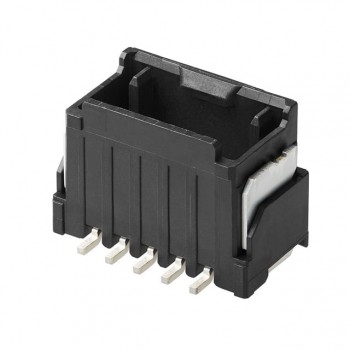

2170630085
