In Stock: 185

Can ship immediately

Pricing:
  • 1$1.95

Quote It

Technical Details

  • Series:Minitek MicroSpaceXS™ 1.27mm
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:8
  • Number of Rows:2
  • Row Spacing - Mating:0.096" (2.43mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.382" (9.70mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:118.1µin (3.00µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Board Guide, Solder Retention
  • Operating Temperature:-40°C ~ 130°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):4A
  • Voltage Rating:48V

Related Products


3010-40-003-11-00

CONN HEADER SMD 40POS 2.54MM

3010-40-003-11-00 Datasheet
  • 1: $1.52000
  • 324: $1.52000

10142344-112KLF

MTK MICROSPACE HEADER-ASSY STG T

  • 1: $1.52265

10155500-A208KLF

MINITEK MICROSPACEXS,1.27MM CRIM

  • 1: $1.99000

2125201004

MINI-FIT MAX 4CKT HDR VERT

  • 1: $1.57000

5054333671

CONN HEADER SMD 36POS 1.25MM

5054333671 Datasheet
  • 1: $2.21000
  • 1500: $2.21000

DF14-15P-1.25H(24)

CONN HEADER SMD R/A 15POS 1.25MM

DF14-15P-1.25H(24) Datasheet
  • 1: $1.58000
  • 10: $1.43561
  • 100: $1.23052

3020-60-0100-00

CONN HEADER VERT 60POS 2.54MM

3020-60-0100-00 Datasheet
  • 1: $1.59600
  • 360: $1.34900

BC020-10-A-0380-0300-L-G

10W, 1.0MM PITCH PIN HDR, SIL, T

  • 1: $1.62000

5054481491

1.25MM PCB HDR R/A 0.10UM GOLD 1

  • 1: $2.34000

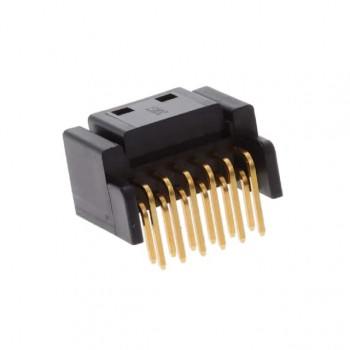

DF51K-12DP-2DS(805)
