MX77A032HF1

JAE Electronics
In Stock: 200

Can ship immediately

Pricing:
  • 1$6.19

Quote It

Technical Details

  • Series:MX77
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:-
  • Number of Positions:32
  • Number of Rows:2
  • Row Spacing - Mating:0.116" (2.95mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.382" (9.70mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyphenylene Sulfide (PPS), Glass Filled
  • Features:Solder Retention
  • Operating Temperature:-40°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


XH5E-8015-2N

PLUG, STRAIGHT, SMT PINS

  • 1: $8.57000

GFSH109M1H

MIXD DEN POWR 109 M CONN

  • 1: $6.17000

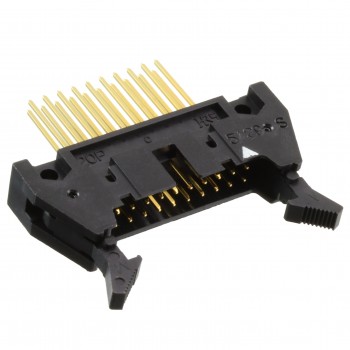

HIF3BA-20P-2.54W(63)

CONN HEADER VERT 20POS 2.54MM

  • 1: $6.54000

15550122601000

HAR-FLEX POWER ANGLED MALE, 12PI

  • 1: $9.07000

A221Y06VXX

MALE 6POS STRAIGHT TRGH 1MM

  • 1: $6.62000

15550122701000

HAR-FLEX POWER ANGLED MALE, 12PI

  • 1: $9.25000

A221Y10VXX

MALE 10POS STRAIGHT TRGH 1MM

  • 1: $6.64000

61203420621

CONN HEADER SMD 34POS 2.54MM

  • 1: $6.79000
  • 11: $6.79000

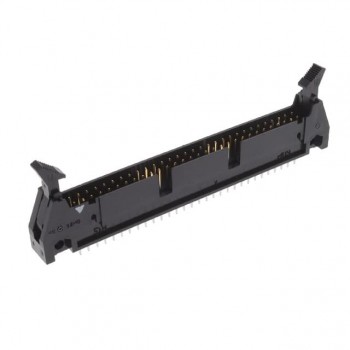

HIF3BA-60PA-2.54DSA(63)
