6-440054-5
TE Connectivity AMP Connectors- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 5POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 6-440054-5 Datasheet
-
ECAD Model
- Share
In Stock: 158
Can ship immediately
Pricing:
- 1$0.0463
- 17,600$0.04472
Quote It
Technical Details
- Series:High Performance Interconnect (HPI)
- Package:Bag
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:5
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Press-Fit, Solder
- Fastening Type:-
- Contact Length - Mating:0.132" (3.35mm)
- Contact Length - Post:0.134" (3.40mm)
- Overall Contact Length:0.335" (8.51mm)
- Insulation Height:0.238" (6.05mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:80.0µin (2.03µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyamide (PA66), Nylon 6/6
- Features:-
- Operating Temperature:-25°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:250V
Related Products

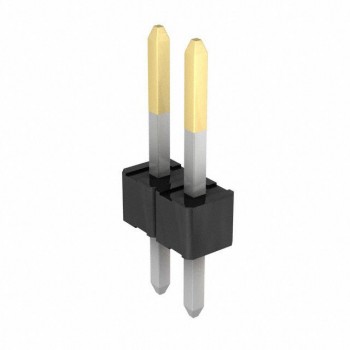

CONN HEADER 2POS 2.54MM
