146870-1
TE Connectivity AMP Connectors- Lifecycle status Active
- RoHS RoHS Compliant

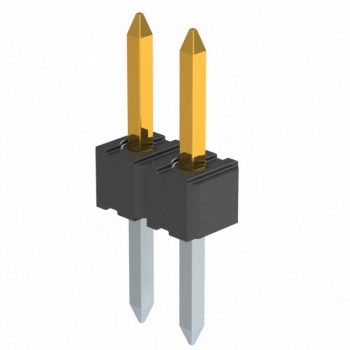

- DescriptionCONN HEADER VERT 25000POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 146870-1 Datasheet
-
ECAD Model
- Share
In Stock: 161
Can ship immediately
Pricing:
- 1$0.05096
- 50,000$0.04712
Quote It
Technical Details
- Series:AMPMODU
- Package:Tape & Reel (TR)
- Part Status:Active
- Connector Type:Header, Breakaway
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:25000, Cuttable
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.318" (8.08mm)
- Contact Length - Post:0.115" (2.92mm)
- Overall Contact Length:0.533" (13.55mm)
- Insulation Height:0.090" (2.29mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin-Lead
- Contact Material:Copper Alloy
- Insulation Material:Thermoplastic
- Features:-
- Operating Temperature:-65°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:-
