1744384-2
TE Connectivity AMP Connectors- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 2POS 3.96MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 1744384-2 Datasheet
-
ECAD Model
- Share
In Stock: 132
Can ship immediately
Pricing:
- 1$0.07769
- 16,000$0.07769
Quote It
Technical Details
- Series:MTA-156
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.156" (3.96mm)
- Number of Positions:2
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 1 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Friction Lock
- Contact Length - Mating:0.450" (11.43mm)
- Contact Length - Post:0.175" (4.45mm)
- Overall Contact Length:0.750" (19.05mm)
- Insulation Height:0.545" (13.84mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:150.0µin (3.81µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Thermoplastic, Glass Filled
- Features:Board Guide
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:600VAC
Related Products

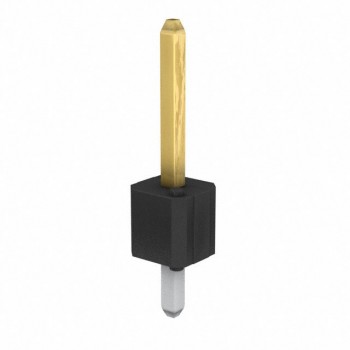

CONN HEADER VERT 1POS
- 1: $0.07784
- 20000: $0.07784

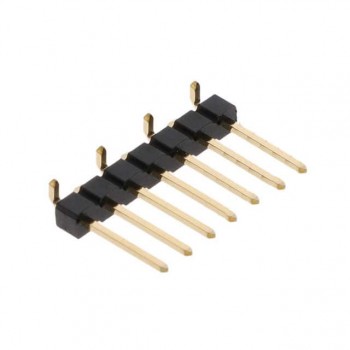

CONN HEADER R/A 7POS 2.54MM
