In Stock: 119

Can ship immediately

Pricing:
  • 1$0.18132
  • 25,600$0.17436

Quote It

Technical Details

  • Series:Universal Power
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Tab
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Positions:3
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.150" (3.81mm)
  • Overall Contact Length:-
  • Insulation Height:0.551" (14.00mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
  • Features:-
  • Operating Temperature:-30°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:-

Related Products


54201-T08-03

CONN HEADER SMD 3POS 2.54MM

54201-T08-03 Datasheet
  • 1: $0.18144
  • 4000: $0.18144

890-18-002-10-004101

CONN HEADER VERT 2POS 2.54MM

890-18-002-10-004101 Datasheet
  • 1: $0.18144
  • 2490: $0.16273

10127820-0822GLF

CONN HEADER VERT 8POS 4.2MM

  • 1: $0.18148
  • 945: $0.18148

2-292161-5

CONN HEADER VERT 5POS 2MM

2-292161-5 Datasheet
  • 1: $0.18159
  • 20000: $0.18159

77315-413-04LF

CONN HEADER R/A 4POS 2.54MM

77315-413-04LF Datasheet
  • 1: $0.18161
  • 2000: $0.16783

3-440054-7

CONN HEADER VERT 7POS 2MM

3-440054-7 Datasheet
  • 1: $0.18162
  • 16900: $0.18162

S6B-PH-KL(LF)(SN)

CONN HEADER R/A 6POS 2MM

  • 1: $0.18162
  • 500: $0.18162

0022045064

CONN HEADER VERT 6POS 2.54MM

0022045064 Datasheet
  • 1: $0.18172
  • 8000: $0.18172

0022045065

CONN HEADER VERT 6POS 2.54MM

0022045065 Datasheet
  • 1: $0.18172
  • 8000: $0.18172

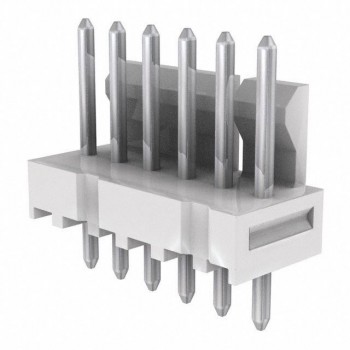

0022045066
