BH3B-XH-2(LF)(SN)

JST
In Stock: 174

Can ship immediately

Pricing:
  • 1$0.1961

Quote It

Technical Details

  • Series:XH
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.098" (2.50mm)
  • Number of Positions:3
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Press-Fit, Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:-



  • Contact Length - Post:0.134" (3.40mm)
  • Overall Contact Length:-
  • Insulation Height:0.276" (7.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA66), Nylon 6/6
  • Features:-
  • Operating Temperature:-25°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):3A
  • Voltage Rating:250V

Related Products


0022284092

CONN HEADER VERT 9POS 2.54MM

0022284092 Datasheet
  • 1: $0.19619
  • 10: $0.18485
  • 25: $0.15835

0022303093

CONN HEADER VERT 9POS 2.54MM

0022303093 Datasheet
  • 1: $0.19619
  • 6000: $0.19619

890-18-003-10-001101

CONN HEADER VERT 3POS 2.54MM

890-18-003-10-001101 Datasheet
  • 1: $0.19620
  • 2500: $0.18778

10136654-0222LF

MINITEK PWR3.0 RA HEADER

  • 1: $0.19643

10136654-0221LF

MINITEK PWR3.0 RA HEADER

  • 1: $0.19643

0022283060

CONN HEADER VERT 6POS 2.54MM

0022283060 Datasheet
  • 1: $0.19656
  • 8000: $0.19656

0757570121

CONN HEADER VERT 2POS 3.5MM

0757570121 Datasheet
  • 1: $0.19657
  • 13500: $0.19657

68015-107HLF

CONN HEADER R/A 7POS 2.54MM

68015-107HLF Datasheet
  • 1: $0.19664
  • 4000: $0.19664

68016-105HLF

CONN HEADER R/A 5POS 2.54MM

68016-105HLF Datasheet
  • 1: $0.19664
  • 4000: $0.19664

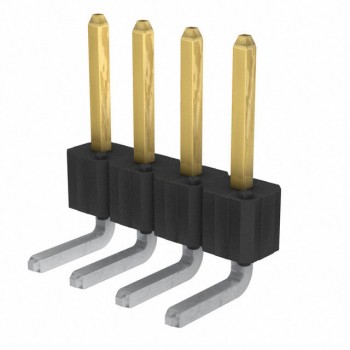

69191-104HLF
