0554870719
Woodhead - Molex- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 7POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0554870719 Datasheet
-
ECAD Model
- Share
In Stock: 120
Can ship immediately
Pricing:
- 1$0.2777
- 10,800$0.2777
Quote It
Technical Details
- Series:MicroTPA 55487
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:7
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Kinked Pin, Solder
- Fastening Type:Latch Lock
- Contact Length - Mating:0.144" (3.66mm)
- Contact Length - Post:0.130" (3.30mm)
- Overall Contact Length:0.604" (15.35mm)
- Insulation Height:0.520" (13.20mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
- Features:Board Guide
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:White
- Current Rating (Amps):-
- Voltage Rating:-
Related Products

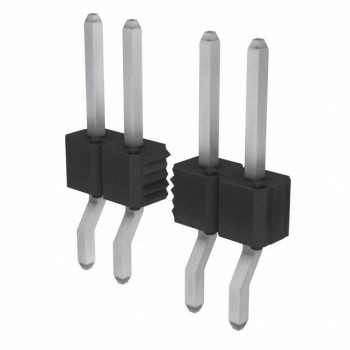

MINITEK1.0 V/T SMT HDR
