892-70-008-10-003101
Preci-Dip
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 8POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 892-70-008-10-003101 Datasheet
-
ECAD Model
- Share
In Stock: 170
Can ship immediately
Pricing:
- 1$0.28
- 2,250$0.25387
Quote It
Technical Details
- Series:892
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:8
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.335" (8.51mm)
- Contact Length - Post:0.118" (3.00mm)
- Overall Contact Length:0.553" (14.04mm)
- Insulation Height:0.100" (2.54mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:Flash
- Contact Finish - Post:Gold
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon, Glass Filled
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:150VDC
Related Products

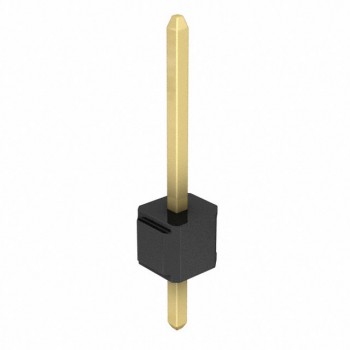

CONN HEADER VERT 1POS
